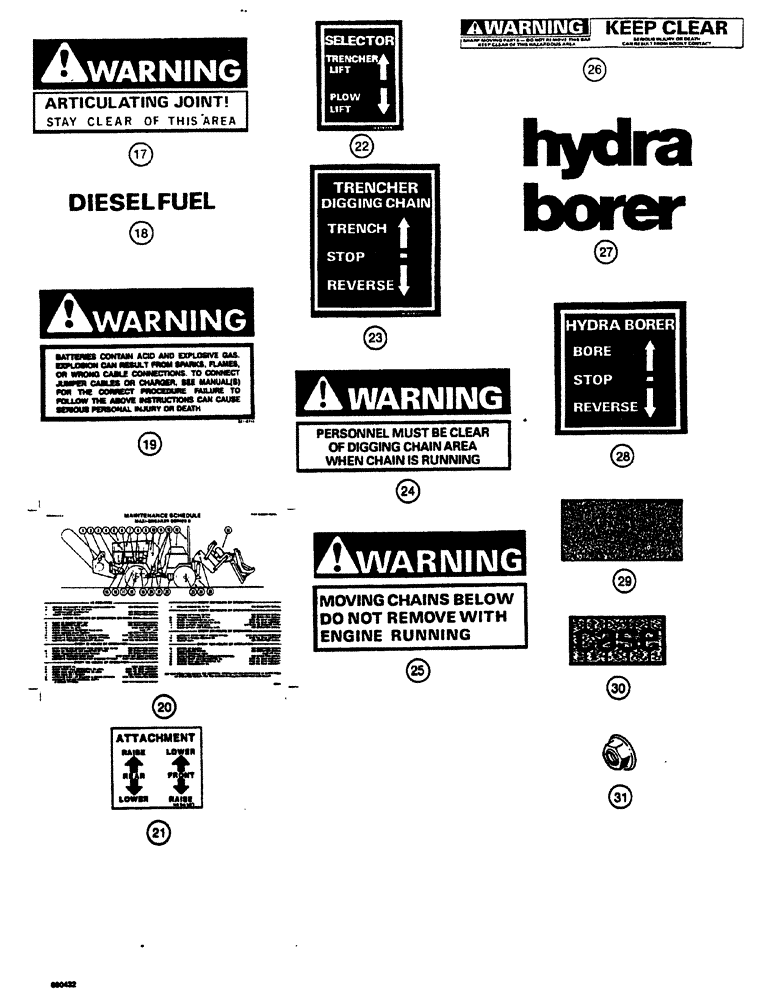

Запчасти Case CASE (9-60) - DECALS (09) - CHASSIS

H672069

KIT

decal, continued from Figure 9-58, Includes: Ref. 17 - 28

1шт.

17

321-3218

DECAL

warning, articulation joint

2шт.

18

321-230

DECAL

diesel fuel

1шт.

19

321-6714

DECAL

warning, batteries contain acid and explosive gas

1шт.

20

8-99010

DECAL

maintenance schedule, Replaces: H433582

1шт.

21

H434287

DECAL

attachment control pattern, used on models with plow and trencher

1шт.

22

H419119

ADHESIVE

DECAL selector valve control pattern, trencher lift/plow lift

1шт.

23

H419101

ADHESIVE

DECAL trencher digging chain control pattern

1шт.

24

321-3214

DECAL

warning, personnel must be clear of digging chain

3шт.

25

321-3258

ADHESIVE

DECAL warning, moving chains below, on trencher chain cover panel

1шт.

26

321-6687

DECAL

warning, keep clear, sharp moving parts, digging chain guard

2шт.

27

H427880

DECAL

Hydra-Borer

1шт.

28

H419093

DECAL

Hydra-Borer control pattern

1шт.

29

H431221

ADHESIVE STRIP

anti-skid, fenders and steps

4шт.

30

321-4739

EMBLEM

on grille

1шт.

31

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push on type

2шт.
