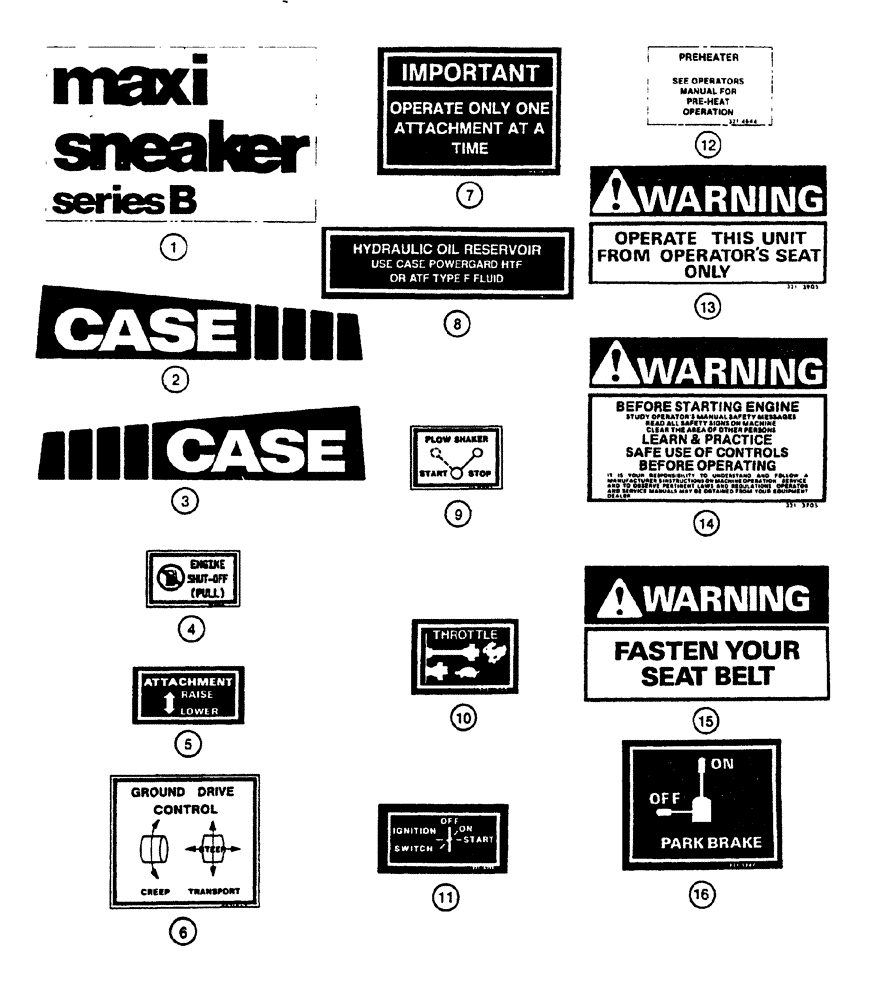

Запчасти Case CASE (9-58) - DECALS (09) - CHASSIS

H672069

KIT

decal, includes installation instruction, Includes: Ref. 1 - 16

1шт.

1

H432104

DECAL

maxi sneaker, series B

2шт.

2

H427575

DECAL

Case, with treads, right-hand

1шт.

3

H427567

DECAL

Case, with treads, left-hand

1шт.

4

H430066

DECAL

engine shut-off

1шт.

5

H249920

DECAL

DECAL attachment control pattern, used on models with plow

1шт.

6

H431833

DECAL

ground drive control pattern

1шт.

7

H419473

ADHESIVE

DECAL important, operate only one attachment at a time

1шт.

8

H438541

DECAL

hydraulic oil reservoir, oil type, Replaces: H277723

1шт.

9

H431841

DECAL

plow shaker, start, stop

1шт.

10

321-5288

DECAL

throttle

1шт.

11

321-6396

DECAL

ignition switch pattern

1шт.

12

321-4644

DECAL

preheater

1шт.

13

321-3905

DECAL

warning, operate unit from operator's seat

1шт.

14

321-3705

DECAL

warning, before starting engine

1шт.

15

321-3217

DECAL

warning, fasten your seat belt

1шт.

16

321-5287

DECAL

park brake, on off

1шт.
