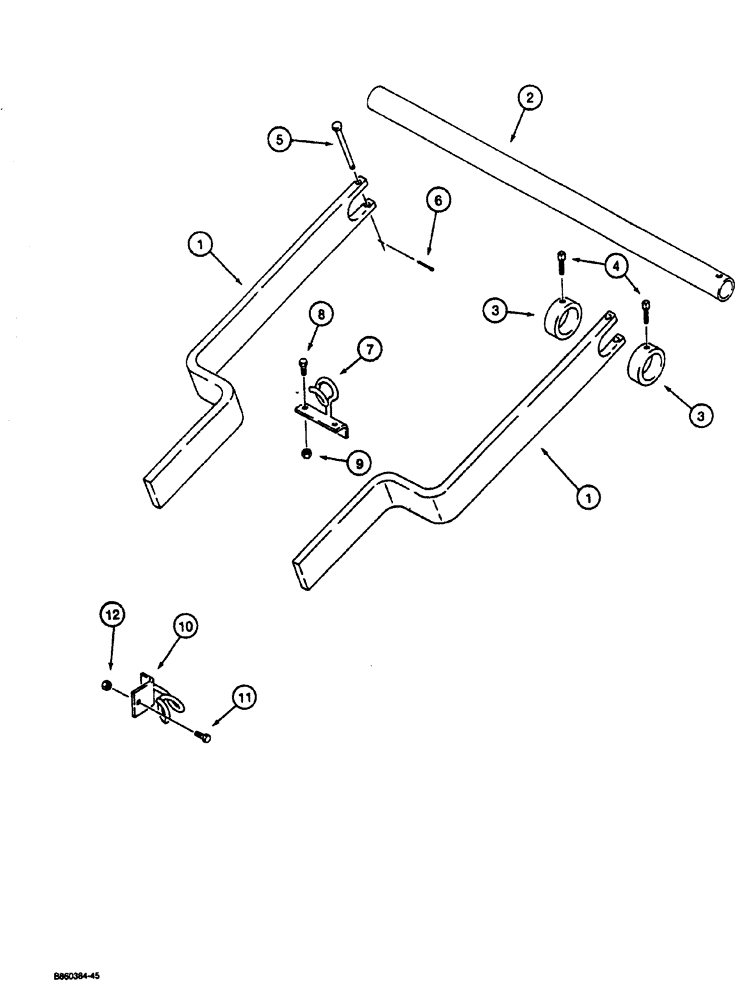

Запчасти Case CASE (9-56) - REEL CARRIER (09) - CHASSIS

1

H347948

ARM

reel carrier

2шт.

2

H350363

PIPE

reel carrier

1шт.

3

H350355

COLLAR

stop

4шт.

4

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SET square head, cup point, 3/8"-16 NC x 1"

4шт.

5

H230243

CLEVIS COUPLING

PIN, 3/8" x 3-5/8" long

2шт.

6

132-334

COTTER PIN,1/8" x 3/4"

2шт.

7

H633065

GUIDE

cable, Serial Range: mounts-hood

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

2шт.

10

H633081

GUIDE

cable, Serial Range: mounts-ROPS

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

1шт.
