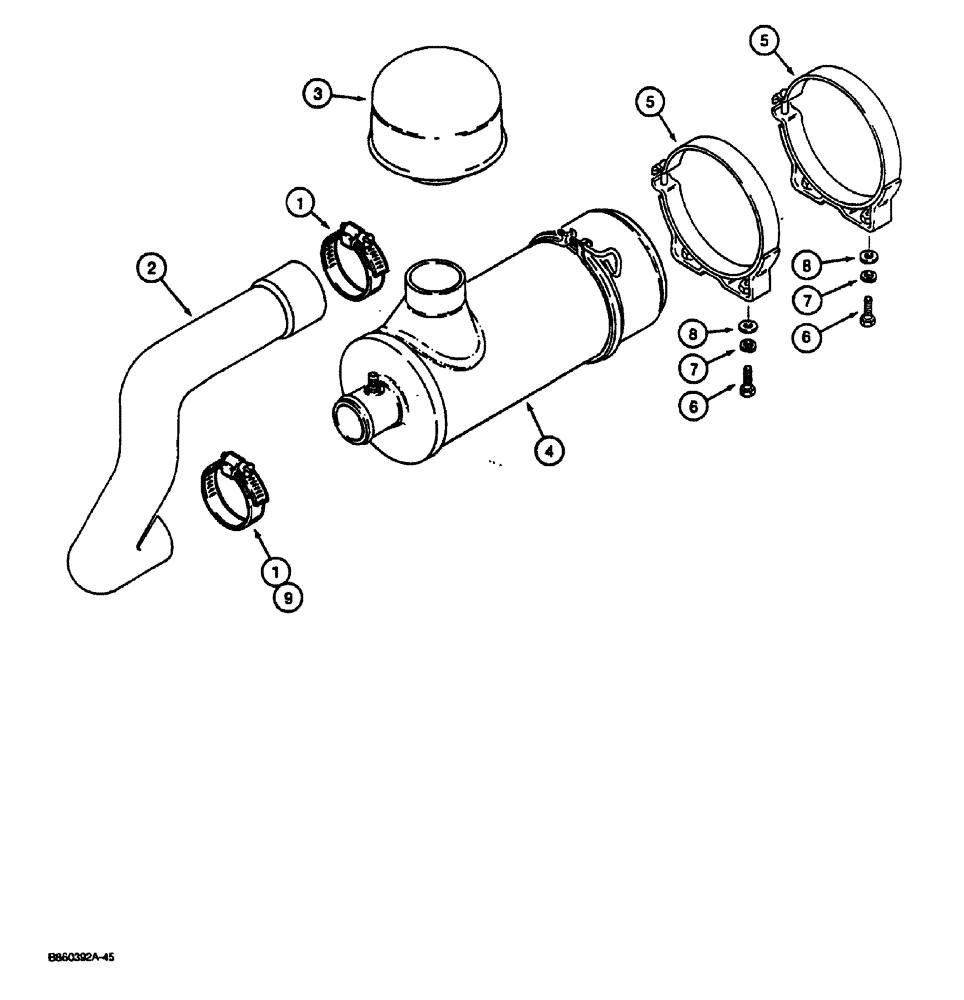

Запчасти Case CASE (2-04) - AIR CLEANER AND AIR INTAKE (02) - ENGINE

1

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

hose, no longer used, order Ref. 9 for service

1-2шт.

2

H421248

INTAKE AIR HOSE,50.80 mm ID x 336.00 mm, SAE 20R4

air cleaner intake

1шт.

3

A61276

AIR CLEANER

CAP intake

1шт.

4

H668939

AIR CLEANER

engine, parts list Figure 2-06

1шт.

5

R41654

COLLAR CLAMP

BAND air cleaner mounting

2шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

8

H426775

WASHER

flat, hardened, plated

4шт.

9

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

hose

1шт.
