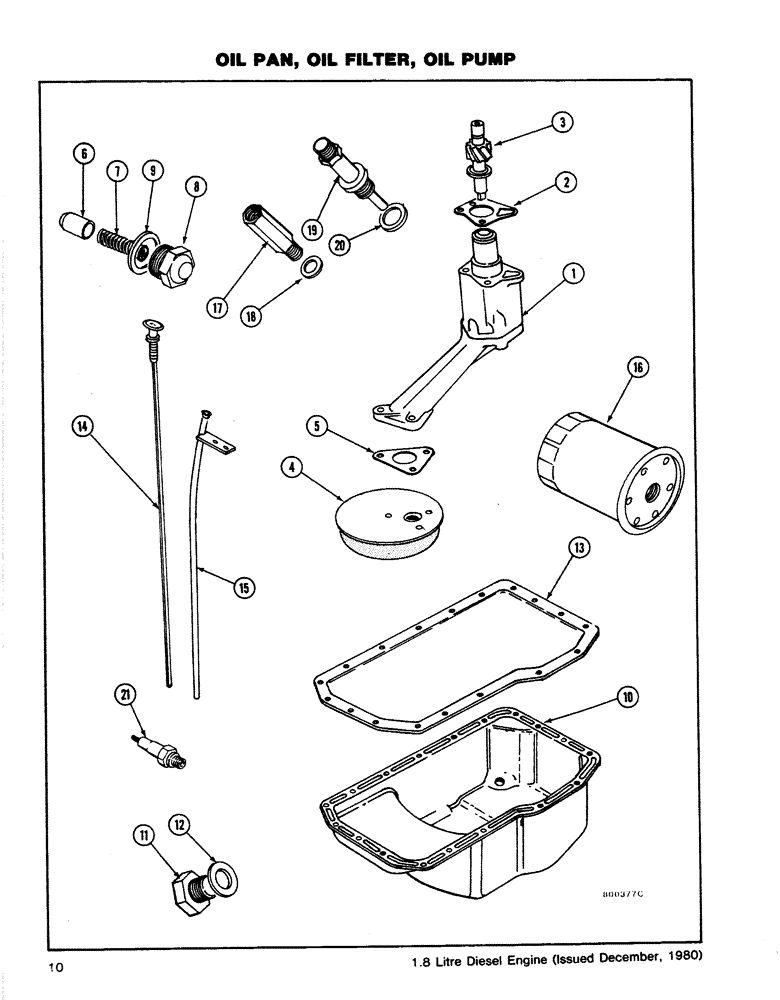

Запчасти Case CASE (10) - OIL PAN, OIL FILTER, OIL PUMP (02) - ENGINE

1

E36520

PUMP

- Oil

1шт.

2

E36521

GASKET

-, Serial Range: Pump-Crankcase

1шт.

195-521

WASHER,5/16", SAE

- Flat (11/32)

3шт.

E36650

WASHER

- Lock

3шт.

E37965

NUT

- Stud

3шт.

3

E36522

SPINDLE

- Oil Pump Drive

1шт.

4

E36523

STRAINER ASSY.

STRAINER - Oil

1шт.

5

E36524

GASKET

-, Serial Range: Strainer-Pump

1шт.

E36669

SCREW

-, Serial Range: Strainer-Pump

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

6

E36525

VALVE

- Oil Release

1шт.

7

E36526

SPRING

- Valve

1шт.

8

E36527

NUT

- Cap

1шт.

9

E36528

WASHER

- Copper

1шт.

10

E36529

RESERVOIR

PAN - Oil

1шт.

11

E36530

PLUG

- Drain

1шт.

12

E36417

WASHER

- Drain Plug

1шт.

13

E36531

GASKET

- Oil Pan

1шт.

E36657

SCREW

18шт.

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

18шт.

195-518

WASHER,1/4", SAE

- Flat (9/32)

18шт.

14

E36532

DIPSTICK

ROD - Oil Dipper

1шт.

15

E36533

TUBE

- Dipper Rod

1шт.

E36658

BOLT,Hex, M4 x 12mm, Cl 8.8

SCREW - Bracket to Pillar Nut

2шт.

195-21

WASHER,5/16"

- Lock (3/8)

2шт.

16

E36534

FILTER

- Oil S/N, Start Serial: 18V/738B/D460

1шт.

16

E38874

FILTER

- Oil to S/N 18V/738/D460

1шт.

E36413

TUBE NUT

ADAPTER - Oil Filter S/N, Start Serial: 18V/738B/D460

1шт.

E38869

TUBE NUT

ADAPTER - Oil Filter, Serial Range: -S/N18V/738/D460

1шт.

17

E36633

ADAPTER

- Switch

1шт.

18

E36417

WASHER

- Adapter

1шт.

19

E36629

ADAPTER

- Oil, Serial Range: Pipe-Cooler

1шт.

20

E36528

WASHER

- Copper

1шт.

21

E36632

PRESSURE SWITCH

SENDER - Oil Pressure

1шт.
