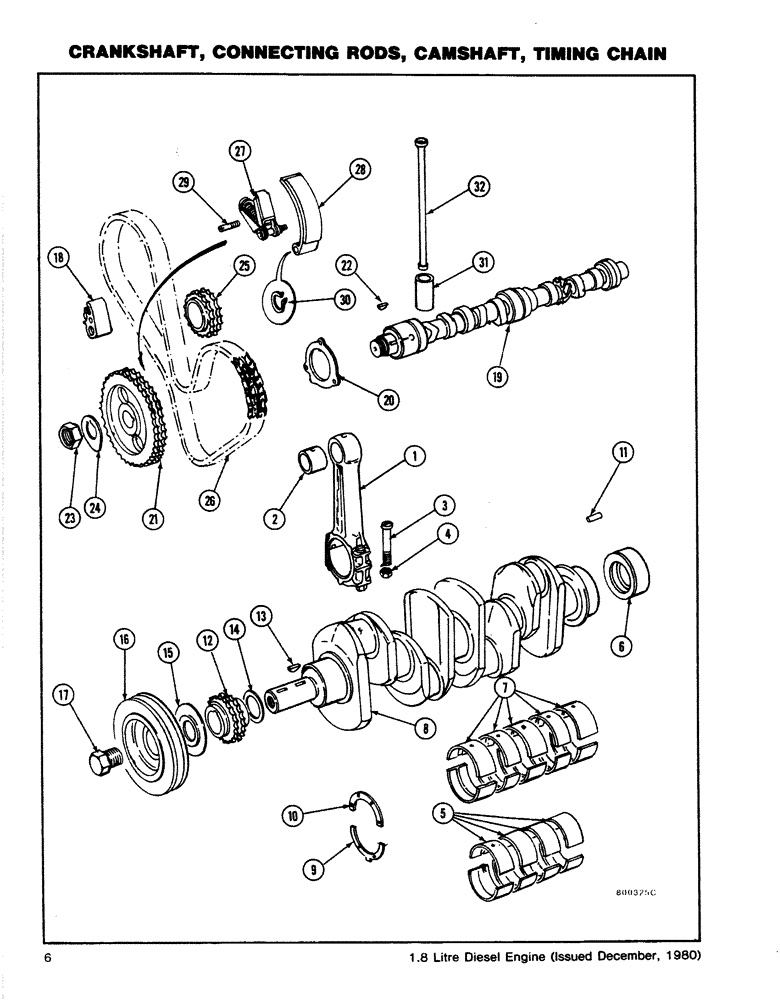

Запчасти Case CASE (06) - CRANKSHAFT, CONNECTING RODS, CAMSHAFT, TIMING CHAIN (02) - ENGINE

E42034

ROD

CONNECTING ROD ASSEMBLY - (Set), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CONNECTING ROD

4шт.

2

E36434

BUSHING

1шт.

3

E36435

BOLT

2шт.

4

E36436

NUT

2шт.

E36437

CRANKSHAFT

ASSEMBLY, Includes: Ref. 5 - 10

1шт.

5

E36438

SET

BEARING SET - Rod, Standard

1шт.

5

E36442

BEARING SET

- Rod, Undersize (0.010)

1шт.

Not included with E36437 Crankshaft Assembly

1шт.

6

E42035

BUSHING

1шт.

7

E36439

SET

BEARING SET - Main, Standard (Replaces E36039)

1шт.

7

E36443

BEARING SET

- Main, Undersize (0.010)

1шт.

Not included with E36437 Crankshaft Assembly

1шт.

8

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

9

E36441

WASHER

- Thrust, Lower, Standard

2шт.

9

E36445

WASHER

- Thrust Lower, Undersize (0.003)

1шт.

Not included with E36437 Crankshaft Assembly

1шт.

10

E36440

WASHER

- Thrust, Upper, Standard

2шт.

10

E36444

WASHER

- Thrust Upper, Undersize (0.003)

1шт.

Not included with E36437 Crankshaft Assembly

1шт.

11

E36448

DOWEL

1шт.

12

E36449

DRIVE SPROCKET

GEAR - Crankshaft

1шт.

13

E36450

KEY

2шт.

14

E36451

WASHER

- Packing, Gear

1шт.

15

E36452

SLINGER

- Oil, Crankshaft Front

1шт.

16

E36453

SHEAVE

PULLEY - Crankshaft, W/Damper

1шт.

17

E36647

BOLT

- Retaining

1шт.

18

E36454

DAMPER

- Vibration

1шт.

E36649

BOLT

- Damper to Block and Hub

2шт.

E36650

WASHER

2шт.

19

E36455

CAMSHAFT

to, Serial Range: Up-18V/738B/D460

1шт.

19

E38870

CAMSHAFT

, Start Serial: 18V/738B/D460

1шт.

20

E36456

PLATE

- Camshaft Locating

1шт.

E36451

WASHER

SCREW

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

21

E36457

GEAR

- Camshaft

1шт.

22

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

23

E36652

NUT

1шт.

24

E36653

LOCK

WASHER - Locking

1шт.

25

E36459

GEAR

- Idler

1шт.

E38871

HUB

- Idler Gear

1шт.

E36654

BOLT

BOLT - Gear to Front Plate

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

E36460

CHAIN (AG)

CHAIN - Timing

1шт.

27

E36461

ADJUSTER

TENIONER - Chain

1шт.

28

E36462

SHOE

- Chain Tensioner

1шт.

29

E36463

PIN

- Stop - Tensioner

1шт.

E36655

NUT

- Pin

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

30

E36464

SNAP RING

RING - Snap

1шт.

31

E36465

TAPPET

- Standard

8шт.

31

E36466

TAPPET

- Undersize (0.010)

8шт.

32

E36468

ROD

- Push

8шт.
