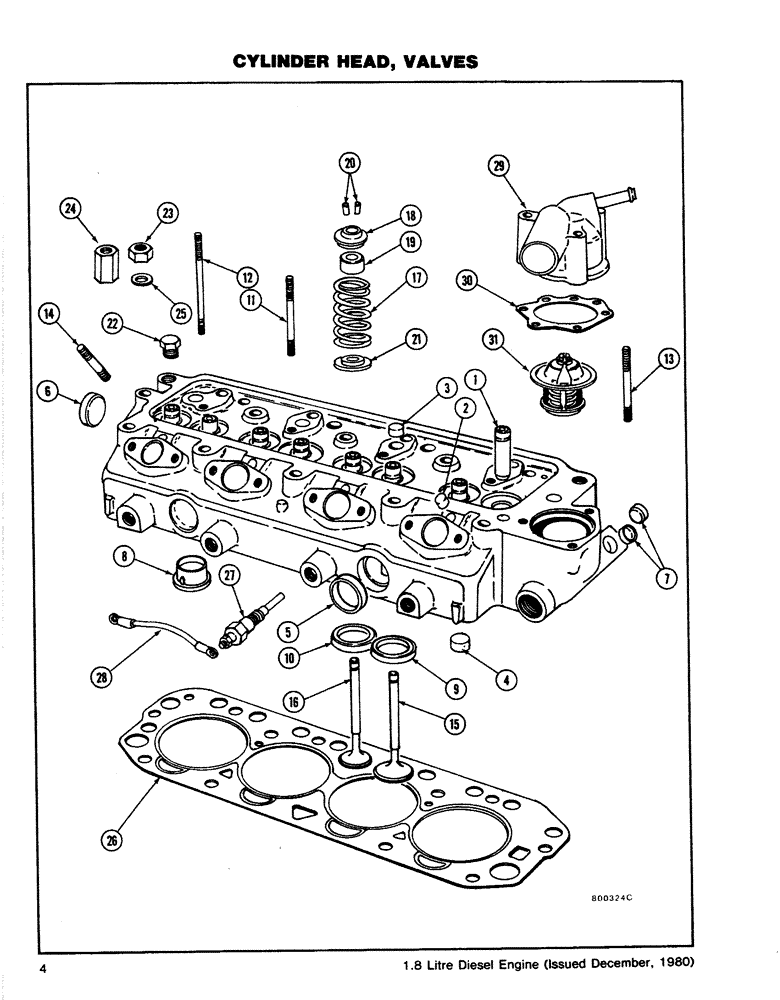

Запчасти Case CASE (04) - CYLINDER HEAD, VALVES (02) - ENGINE

E42141

CYLINDER HEAD

ASSEMBLY, Includes: Ref. 1 - 10

1шт.

1

E36470

GUIDE

- Valve

8шт.

2

E36404

PLUG

- Water Jet Boss and Air Vent

5шт.

Refer to illustration, to the left of the Thermostat and on the top of the head there is a plug part.

1шт.

3

E41347

PLUG

- Core, Support Hole

1шт.

4

E36472

PLUG

- Core, Support Hole

7шт.

5

E36408

PLUG

- Core, Cup

2шт.

6

E41348

PLUG

- Oil Hole

1шт.

7

E36473

PLUG

- Core

2шт.

8

E36474

INSERT

- Combustion Chamber S/N, Start Serial: 18V/738B/D459

1шт.

Another insert used, not a sub, SN 18V/7388/D and on E44145.

1шт.

9

E36475

INSERT

- Valve Seat, Inlet S/N, Start Serial: 18V/738B/D459

1шт.

10

E36476

INSERT

- Valve Seat, Exhaust

4шт.

11

E36477

STUD

- Rocker Bracket, Short

2шт.

12

E36478

STUD

- Rocker Bracket, Long

2шт.

13

E36479

STUD

- Water Outlet Elbow

3шт.

195-521

WASHER,5/16", SAE

- Flat (11/32)

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

129-122

NUT,5/16"-24, G5

Stud 5/16"-24, G5

3шт.

14

E36482

STUD

- Nozzle Holder to Cylinder Head

8шт.

15

E42222

VALVE

- Inlet

4шт.

16

E42223

VALVE

- Exhaust

4шт.

17

E36485

SPRING

- Valve

8шт.

18

E36486

COLLAR

- Valve Spring

8шт.

19

E6487

SEAL - Oil, Valve Stem

4шт.

20

E36488

PIN

COTTER - Valve

8шт.

21

E36489

CUP

- Valve Spring

8шт.

E42231

PLUG

- Cylinder Head to S/N 18V/73

1шт.

E42232

WASHER

to S/N 18V/738B/D4171

1шт.

Refer to Illustration, Item 8 to the left is a washer part, E42232.

1шт.

23

E36491

NUT

- Cylinder Head Stud

11шт.

24

E36492

NUT

- Cylinder Head Stud

2шт.

25

E36493

WASHER

13шт.

26

E36494

GASKET

- Cylinder Head

1шт.

27

E36495

GLOW PLUG

4шт.

28

E36496

CONNECTOR, ELEC

CONNECTION - Glow Plug

3шт.

29

E36497

MANIFOLD

ELBOW - Water Outlet

1шт.

30

E36498

GASKET

- Elbow

1шт.

31

E36499

THERMOSTAT

- (180 degree F)

1шт.

31a

E42960

THERMOSTAT

165 degree

1шт.
