Запчасти Case CASE (02) - ENGINE ASSEMBLY, CYLINDER BLOCK, ROTORS, RINGS (02) - ENGINE

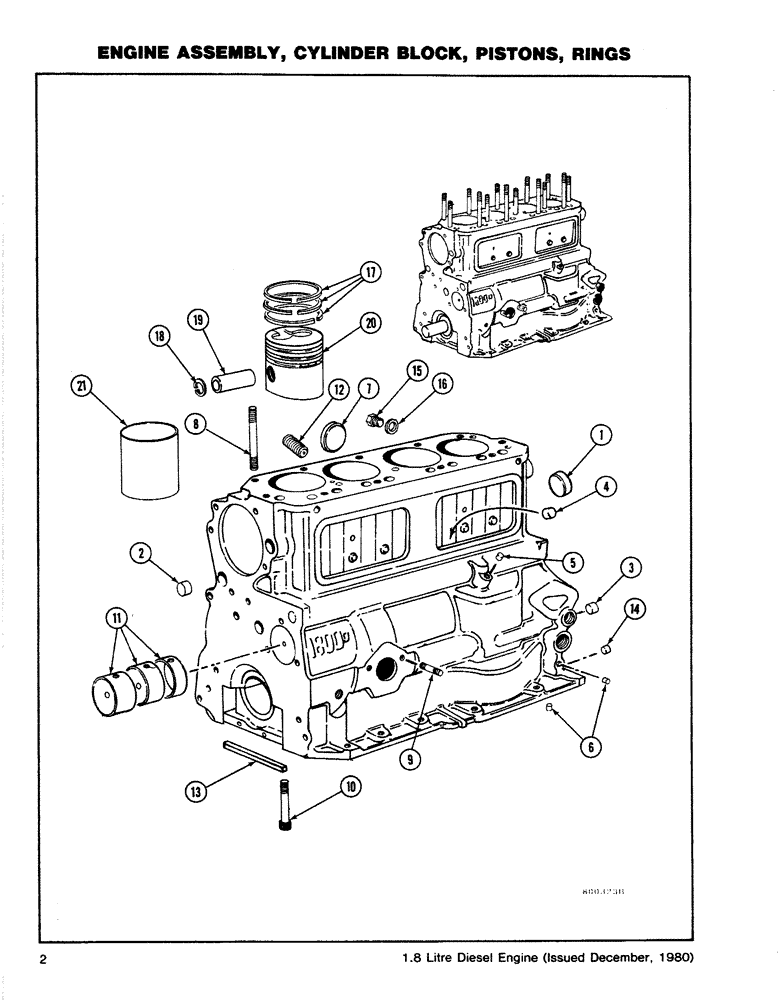

Схема запчастей Case CASE - (02) - ENGINE ASSEMBLY, CYLINDER BLOCK, ROTORS, RINGS (02) - ENGINE
14
1
13
12
20
2
4
15
16
11
5
8
21
3
7
17
18
10
6
9
19

Артикул

Название

Примечание

Количество

H632869

ENGINE ASSEMBLY

- Maxi-Sneaker, W4, Includes: Ref. 1 - 21

1шт.

Also includes refs. 18, 19, 20. E42033 Short Block Assembly.

1шт.

H642223

ENGINE ASSEMBLY - DH4, Includes: Ref. 1 - 21

1шт.

Also includes refs. 18, 19, 20. E42033 Short Block Assembly.

1шт.

1

E36401

PLUG

- Core

2шт.

2

E36402

BLOCK

PLUG - Oil Gallery & Oil Feed Hole

6шт.

3

E36403

PLUG

- Taper - Oil Hole

1шт.

4

E36404

PLUG

- Taper - Oil Hole

1шт.

5

E36406

PLUG

- Drilling to Camshaft Bearing

1шт.

6

E36407

PLUG

- Oil Relief Valve Vent Hole

2шт.

7

E36408

PLUG

- Welsh

3шт.

8

E36409

STUD

- Cylinder Head - Short

10шт.

9

E36411

STUD - Fuel Pump

2шт.

10

E36412

BOLT

- Place - Main Bearing

10шт.

11

E36405

BEARING LINER

LINER - Camshaft Bearing (Set of 3), S/N, Serial Range: 18V/738B/D101-D459

1шт.

11

E38868

BEARING LINER

LINER - Camshaft Bearing (Set of 3), S/N 18V/738B/460 and after

1шт.

12

E36413

TUBE NUT

ADAPTER - Oil Filter, S/N, Serial Range: 18V/738B/D101-D459

1шт.

12

E38869

TUBE NUT

STUD - Oil Filter Mounting, S/N 18V/738B/D460 and after

1шт.

13

E36414

GASKET

- Main Bearing Cap

2шт.

14

E36415

DOWEL

- Gearbox Mounting Plate

2шт.

15

E36416

PLUG

- Cylinder Drain

1шт.

16

E36417

WASHER

- Plug

1шт.

E36419

PISTON

ASSEMBLY - Standard, Includes: ref 17, 18, 19 and 20

1шт.

E36422

PISTON

ASSEMBLY - Oversize, 0.020, Includes: ref 17, 18, 19 and 20

1шт.

17

E36427

RING

SET - Standard

1шт.

Part of Piston Assembly, P/N E36419

1шт.

17

E36428

RING, SET

RING SET - Oversize (0.020)

1шт.

Part of Piston Assembly, P/N E36422

1шт.

18

E36431

RING, SNAP

RING - Retaining

1шт.

Part of Piston Assembly, P/N E36419

1шт.

Part of Piston Assembly, P/N E36422

1шт.

19

E36430

PIN

- Piston

1шт.

Part of Piston Assembly, P/N E36419

1шт.

Part of Piston Assembly, P/N E36422

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON

1шт.

Part of Piston Assembly, P/N E36419

1шт.

Part of Piston Assembly, P/N E36422

1шт.

21

E36432

SLEEVE CYLINDER

LINER - Cylinder

4шт.

Выбрано товаров: 38
