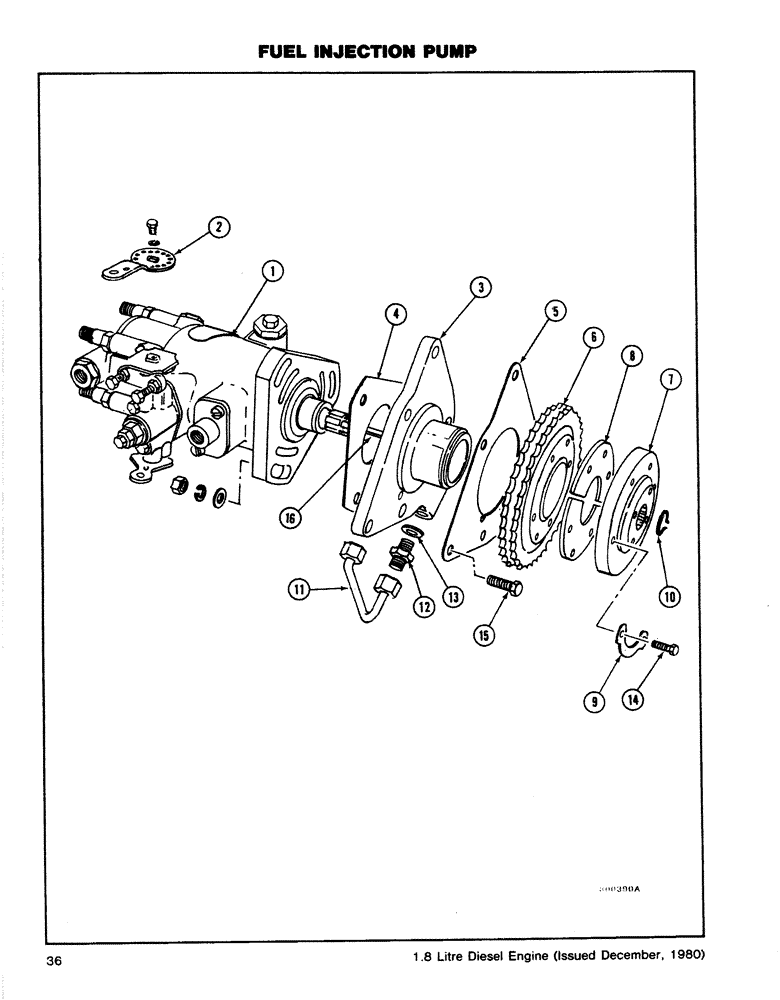

Запчасти Case CASE (36) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

E36612

PUMP

FUEL INJECTION PUMP ASSEMBLY, Includes: Ref. 2, Used on Maxi-Sneaker, W4

1шт.

1

E41401

PUMP

FUEL INJECTION PUMP ASSEMBLY, Includes: Ref. 2, Used on DH4

1шт.

2

E36644

LEVER

- Throttle

1шт.

These parts attach to Ref. 2.

1шт.

E41352 rod.

1шт.

E41351, ball joint snaps on.

1шт.

129-37 NUT

1шт.

3

E36645

HUB

- Injection Pump

1шт.

4

E36673

GASKET

-, Serial Range: Pump-Hub

1шт.

5

E36674

GASKET

- Hub to Front Plate

1шт.

6

E36677

GEAR

- Driving

1шт.

7

E36678

FLANGE

- Driving

1шт.

8

E36679

PLATE

- Locating - Flange

1шт.

9

E36680

PLATE

- Locking

2шт.

10

E36681

RING, SNAP

RING - Retaining

1шт.

11

E36682

PIPE

- Oil

1шт.

12

E36683

UNION

- Oil Pipe

2шт.

13

E36684

WASHER

- Seal

2шт.

14

E36669

SCREW

- Locking Plate

4шт.

15

E36669

SCREW

- Hub

3шт.

195-521

WASHER,5/16", SAE

- Flat

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

129-122

NUT,5/16"-24, G5

3шт.

16

N8551

BAR

TORSION BAR

1шт.
