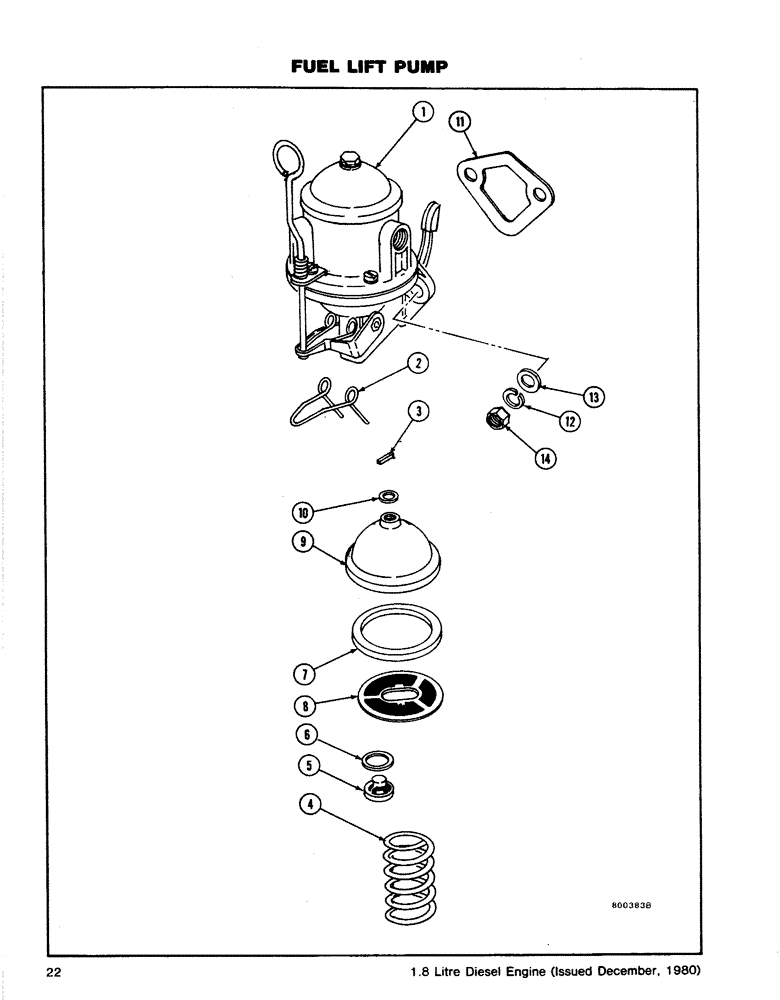

Запчасти Case CASE (22) - FUEL LIFT PUMP (03) - FUEL SYSTEM

1

E36566

PUMP

FUEL LIFT PUMP ASSEMBLY, Includes: Ref. 2 - 10

1шт.

2

E36567

SPRING

- Primer

1шт.

3

E36568

RETAINER

- Rocker Arm Pin

2шт.

4

E36569

VALVE SPRING

SPRING - Diaphragm

1шт.

5

E36570

LOCK VALVE

VALVE

2шт.

Included in E36689 Fuel Pump Repair Kit - Major

1шт.

Included in E36690 Fuel Pump Repair Kit - Primary

1шт.

6

E36571

GASKET

- Valve

2шт.

Included in E36689 Fuel Pump Repair Kit - Major

1шт.

Included in E36690 Fuel Pump Repair Kit - Primary

1шт.

7

E36572

GASKET

- Filter Cover

1шт.

Included in E36689 Fuel Pump Repair Kit - Major

1шт.

Included in E36690 Fuel Pump Repair Kit - Primary

1шт.

8

E36573

FILTER

SCREEN - Filter

1шт.

Included in E36689 Fuel Pump Repair Kit - Major

1шт.

9

E36574

COVER ASSY

COVER - Filter

1шт.

10

E36575

WASHER

- Cover Screw

1шт.

Included in E36689 Fuel Pump Repair Kit - Major

1шт.

Included in E36690 Fuel Pump Repair Kit - Primary

1шт.

E36667

SCREW

- Cover

1шт.

11

E36576

GASKET

-, Serial Range: Pump-Block

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

195-521

WASHER,5/16", SAE

- Flat (11/32)

2шт.

14

129-122

NUT,5/16"-24, G5

2шт.
