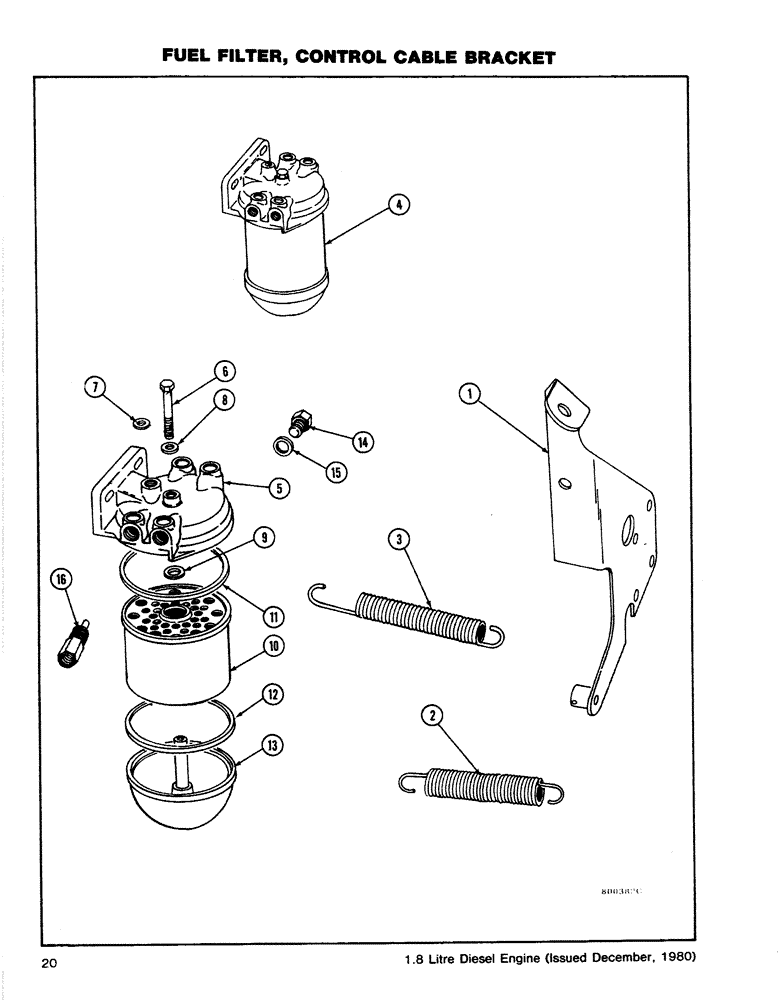

Запчасти Case CASE (20) - FUEL FILTER, CONTROL, CABLE BRACKET (03) - FUEL SYSTEM

1

E36614

BRACKET

- Control Cable

1шт.

2

E36615

SPRING

- Return - Fuel Cut-Off Lever

1шт.

3

E36616

SPRING

- Return - Throttle Lever

1шт.

4

E36617

FILTER

FUEL FILTER ASSEMBLY, Includes: Ref. 5 - 13

1шт.

5

E36618

COVER

- Filter

1шт.

6

E36619

BOLT

BOLT - Center

1шт.

7

E36620

RING

WASHER - Sealing

1шт.

8

K963895

WASHER

1шт.

9

E36622

RING

- Element Sealing

1шт.

10

E36623

FILTER

ELEMENT - Fuel Filter

1шт.

11

K965801

RING

- Cover Sealing

1шт.

12

K965802

RING

- Base Sealing

1шт.

13

E36625

BASE

1шт.

14

E36626

PLUG

- Filter

1шт.

15

E36627

WASHER

- Plug

1шт.

16

E36628

VALVE

- Non-Return

1шт.

E41357

BRACKET - Fuel Filter

1шт.

E41358

SPACER - Bracket to Pillar Unit

2шт.

E41359

SCREW - NF HH (3/8 x 1 1/4)

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
