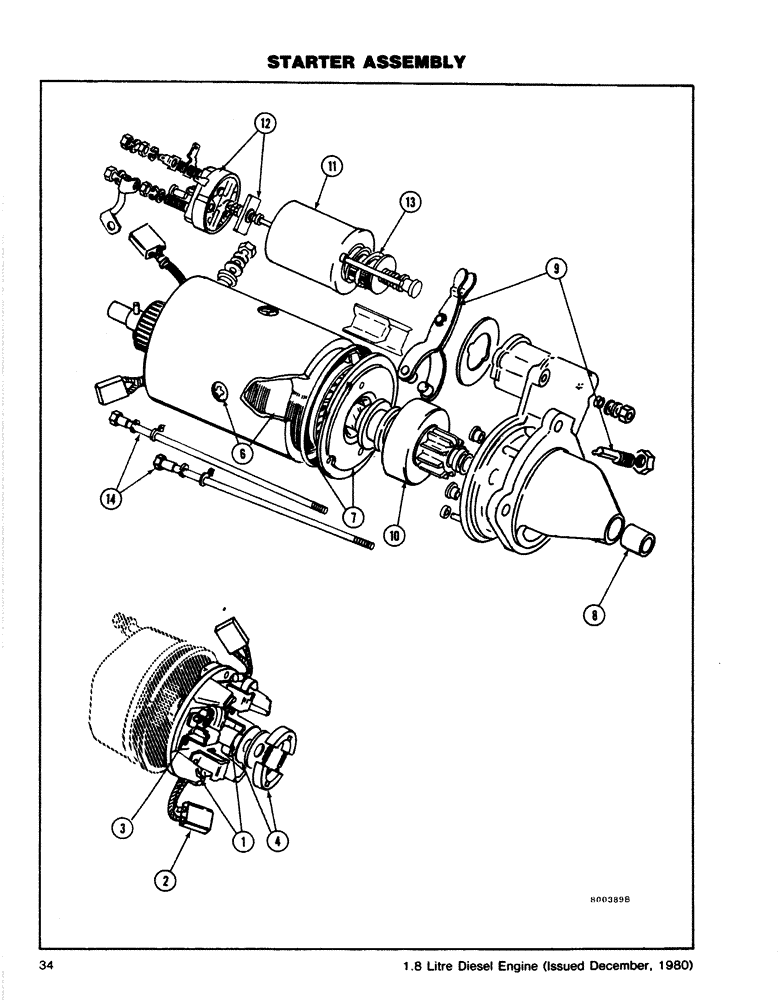

Запчасти Case CASE (34) - STARTER ASSEMBLY (02) - ENGINE

E42369

STARTER MOTOR

STARTER ASSEMBLY, Includes: Ref. 1 - 16

1шт.

1

H658203

BRACKET

KIT - Bracket - Commutator End

1шт.

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

DOWEL

1шт.

NSS

NOT SOLD SEPARAT

BRUSHES - Earth

2шт.

NSS

NOT SOLD SEPARAT

SCREW - Terminal

1шт.

2

H658393

BRUSH ASSY.

KIT - Brush

1шт.

NSS

NOT SOLD SEPARAT

BRUSH - Earth

2шт.

NSS

NOT SOLD SEPARAT

BRUSH - Insulating

2шт.

3

K963798

SPRING

KIT - Brush Spring

1шт.

NSS

NOT SOLD SEPARAT

SPRING - Brush

4шт.

4

K9638S7

KIT - Brake

1шт.

NSS

NOT SOLD SEPARAT

SHOE

2шт.

NSS

NOT SOLD SEPARAT

SPRING

2шт.

NSS

NOT SOLD SEPARAT

WASHER - Thrust

2шт.

6

H658401

KIT

- Field Coil

1шт.

NSS

NOT SOLD SEPARAT

COILS - Field

1шт.

NSS

NOT SOLD SEPARAT

TERMINAL ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

SCREW - Pole

4шт.

NSS

NOT SOLD SEPARAT

INSULATOR - Yoke

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - Intermediate

1шт.

8

K963791

KIT

- Bushing

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - Commutator End

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - Drive End

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - Intermediate

1шт.

H658336

KIT

- Sealing Rubber

1шт.

NSS

NOT SOLD SEPARAT

All Necessary Seals

1шт.

9

H658419

SOLENOID

KIT - Solenoid

1шт.

NSS

NOT SOLD SEPARAT

PINION

1шт.

NSS

NOT SOLD SEPARAT

LEVER - Engaging

1шт.

NSS

NOT SOLD SEPARAT

PIVOT - Eccentric

1шт.

NSS

NOT SOLD SEPARAT

NUT - Lock

1шт.

10

H658427

DRIVE

ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

DRIVE

1шт.

NSS

NOT SOLD SEPARAT

COLLAR - Thrust

1шт.

NSS

NOT SOLD SEPARAT

RING - Jumping

1шт.

11

H658435

SOLENOID

Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - END

1шт.

NSS

NOT SOLD SEPARAT

CONTACTS

2шт.

NSS

NOT SOLD SEPARAT

SPINDLE

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - Plunger Return

1шт.

NSS

NOT SOLD SEPARAT

SOLENOID BELLOWS ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

BELLOWS

1шт.

NSS

NOT SOLD SEPARAT

PLATE - Support

1шт.

14

H658385

KIT - Through Bolt

1шт.

NSS

NOT SOLD SEPARAT

BOLT - Through

2шт.

NSS

NOT SOLD SEPARAT

WASHER - Spring

2шт.

NSS

NOT SOLD SEPARAT

WASHER - Lock

2шт.

NSS

NOT SOLD SEPARAT

RING - Sealing

2шт.

15

K964185

ARMATURE

KIT - Armature Service

1шт.

NSS

NOT SOLD SEPARAT

ARMATURE

1шт.

NSS

NOT SOLD SEPARAT

PIN - Shaft

1шт.

16

H658443

BRACKET

KIT - Bracket - Drive End

1шт.

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

NSS

NOT SOLD SEPARAT

DOWEL

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - Sealing

1шт.
