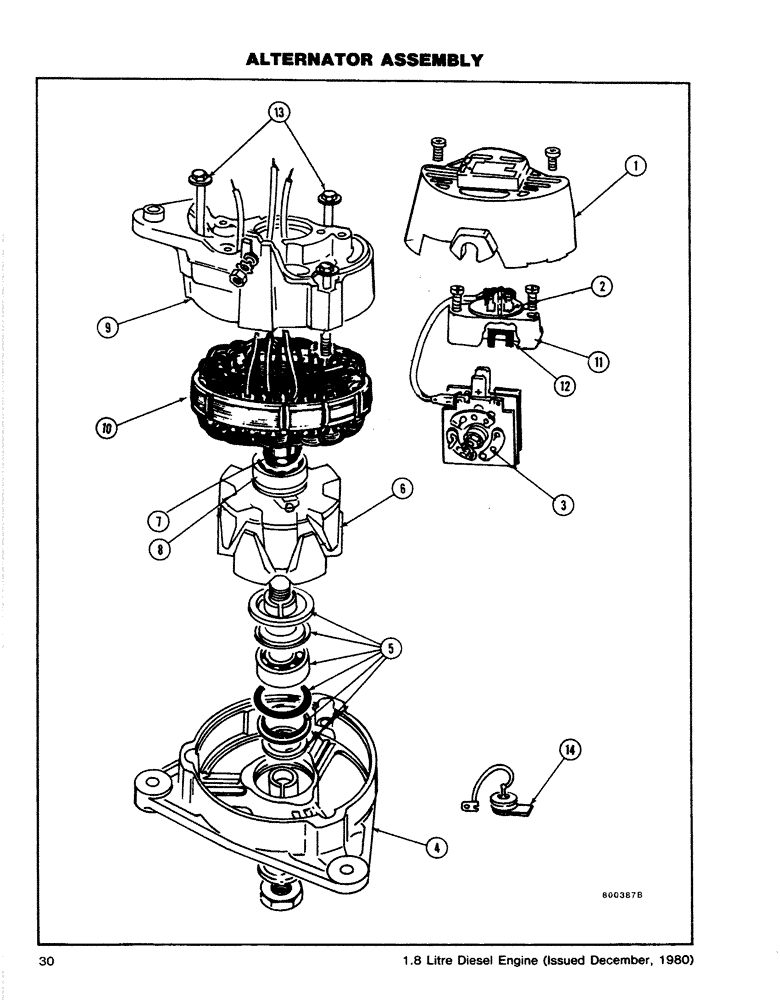

Запчасти Case CASE (30) - ALTERNATOR ASSEMBLY (02) - ENGINE

E36638

ALTERNATOR

ASSEMBLY, Includes: Ref. 1 - 14

1шт.

1

K402537

COVER

1шт.

2

H415901

REGULATOR

(Replaces K962774)

1шт.

3

K962783

RECTIFIER

(Replaces K407098)

1шт.

4

K963919

BRACKET

- Drive End, Includes: Ref. 5

1шт.

5

K963778

BEARING ASSY

KIT - Drive End Bearing

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

NSS

NOT SOLD SEPARAT

PLATE

1шт.

NSS

NOT SOLD SEPARAT

CIRCLIP

1шт.

NSS

NOT SOLD SEPARAT

RING - Pressure

1шт.

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

NSS

NOT SOLD SEPARAT

SEAL - Felt

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY, Includes: Ref. 7 and 8

1шт.

7

K964178

SLIP RING

RING - Slip

1шт.

8

K963779

KIT

- Slip Ring End Bearing

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

NSS

NOT SOLD SEPARAT

SEAL - Black Moulded Dust

1шт.

NSS

NOT SOLD SEPARAT

RING - Pressure

1шт.

9

K964180

BRACKET

- Slip Ring End

1шт.

10

NSS

NOT SOLD SEPARAT

STATOR

1шт.

11

K963772

BOX

BRUSH BOX ASSEMBLY, Includes: Ref. 12

1шт.

12

K964151

BRUSH, COMMUTATOR

SET - Brush

1шт.

13

K964181

BOLT (MACHINE)

BOLT

3шт.

K963937

KIT - Sundry Parts

1шт.

NSS

NOT SOLD SEPARAT

NUT - Shaft

1шт.

NSS

NOT SOLD SEPARAT

NUT - Rectifier

1шт.

NSS

NOT SOLD SEPARAT

WASHER - Shaft

1шт.

NSS

NOT SOLD SEPARAT

WASHER - Plain

1шт.

NSS

NOT SOLD SEPARAT

KEY - Woodruff

1шт.

NSS

NOT SOLD SEPARAT

SCREW - Small Self-tapping

6шт.

NSS

NOT SOLD SEPARAT

SCREW - Large Self-tapping

4шт.

NSS

NOT SOLD SEPARAT

SLEEVE - Damping

1шт.

NSS

NOT SOLD SEPARAT

WASHER - Star

1шт.

NSS

NOT SOLD SEPARAT

COLLAR - Spacing

1шт.

14

K964182

PROTECTOR

DEVICE - Surge Protection

1шт.
