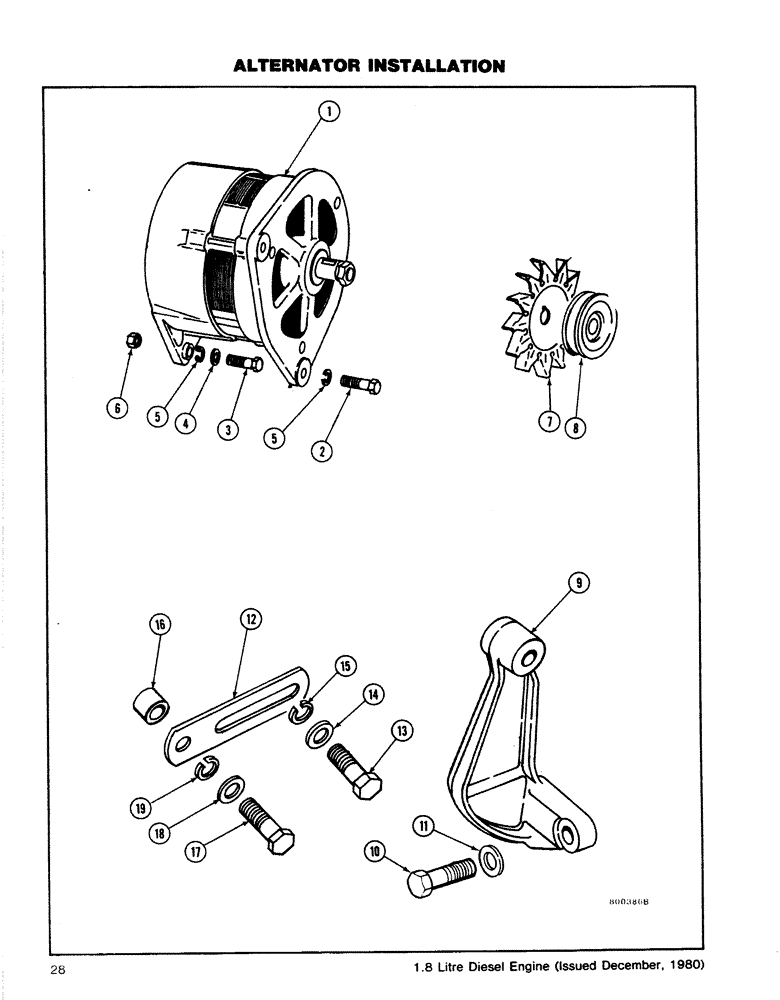

Запчасти Case CASE (28) - ALTERNATOR INSTALLATION (02) - ENGINE

1

E36638

ALTERNATOR

ASSEMBLY - Lucas 23847A 16 ACRE (See Figure 30)

1шт.

2

E36659

BOLT

- Alternator

1шт.

3

E36660

BOLT

-, Serial Range: Alternator-Bracket

1шт.

4

195-52

WASHER

- Flat (11/32)

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

129-122

NUT,5/16"-24, G5

1шт.

7

E36639

FAN

- Alternator

1шт.

8

E36640

PULLEY

- Alternator

1шт.

8

E36641

PULLEY

- Alternator (Alternative)

1шт.

9

E36642

BRACKET

- Alternator - Rear

1шт.

10

E36671

SCREW

BOLT -, Serial Range: Bracket-Block

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

E36643

LINK

- Adjusting

1шт.

13

E36659

BOLT

1шт.

14

195-521

WASHER,5/16", SAE

- Flat (11/32)

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

16

E41364

SPACER

- Alternator to Mounting Plate

1шт.

17

114-107

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- Link to Cover

1шт.

18

195-521

WASHER,5/16", SAE

- Flat (11/32)

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.
