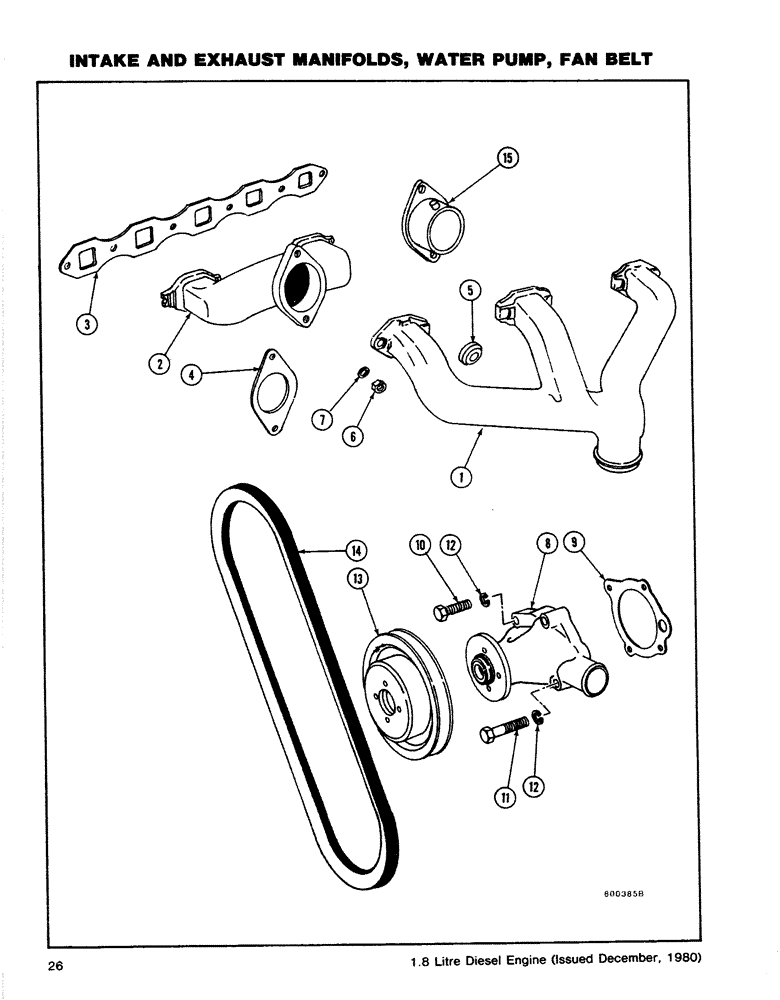

Запчасти Case CASE (26) - INTAKE & EXHAUST MANIFOLDS, WATER PUMP, FAN BELT (02) - ENGINE

1

H362277

MANIFOLD

- Exhaust

1шт.

2

E36596

MANIFOLD

- Intake

1шт.

3

E36597

GASKET

- Manifolds to Cylinder Head

1шт.

4

E35635

GASKET

- Control, Serial Range: Unit-Manifold

1шт.

5

E36598

YOKE

- Manifold

4шт.

6

E36668

NUT

- Stud - Manifold to Cylinder Head

6шт.

7

195-521

WASHER,5/16", SAE

- Flat (11/32)

2шт.

E36314

CLAMP

-, Serial Range: Pipe-Manifold

2шт.

8

E42037

PUMP

WATER PUMP ASSEMBLY, Includes: Ref. 9

1шт.

9

E42038

GASKET

- Water Pump

1шт.

10

E36659

BOLT

-, Serial Range: Pump-Crankcase

2шт.

11

E36666

BOLT

-, Serial Range: Pump-Crankcase

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

13

E41075

PULLEY

- Fan and Water Pump

1шт.

14

E36603

BELT

BELT, Fan

1шт.

15

H628081

AIR INTAKE TUBE,1.68" L

TUBE - Intake

1шт.

113-163

HARDWARE,Hex, 5/16"-18 x 1 1/4", G2

BOLT - NC HH (5/16 x 1)

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
