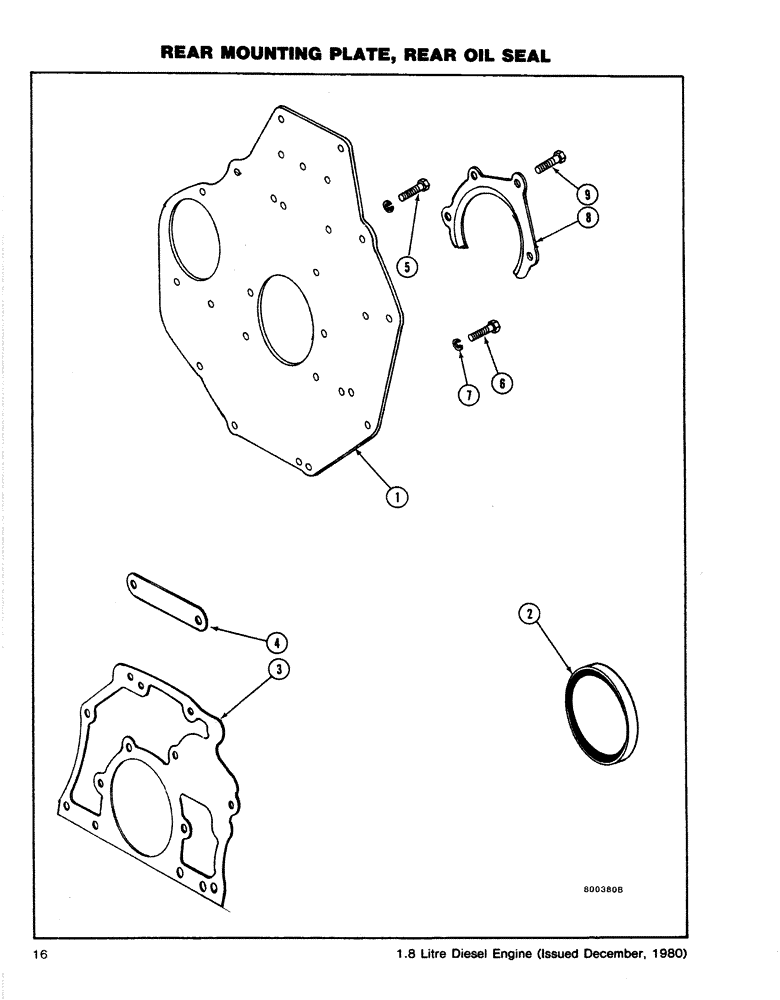

Запчасти Case CASE (16) - REAR MOUNTING PLATE, REAR OIL SEAL (02) - ENGINE

1

H362285

PLATE

- Rear Mounting

1шт.

2

E36605

SEAL

- Oil Crankshaft - Rear

1шт.

3

E36606

GASKET

-, Serial Range: Plate-Crankcase

1шт.

4

E36608

GASKET

- Plate to Block - Upper

1шт.

5

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Rear Plate to Block

2шт.

6

E36670

PIPE

SCREW - Mounting, Serial Range: Plate-Block

8шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

8

E36609

WASHER

- Locking - Oil Seal Retainer

1шт.

9

E36671

SCREW

- Mounting, Serial Range: Plate-Block

4шт.
