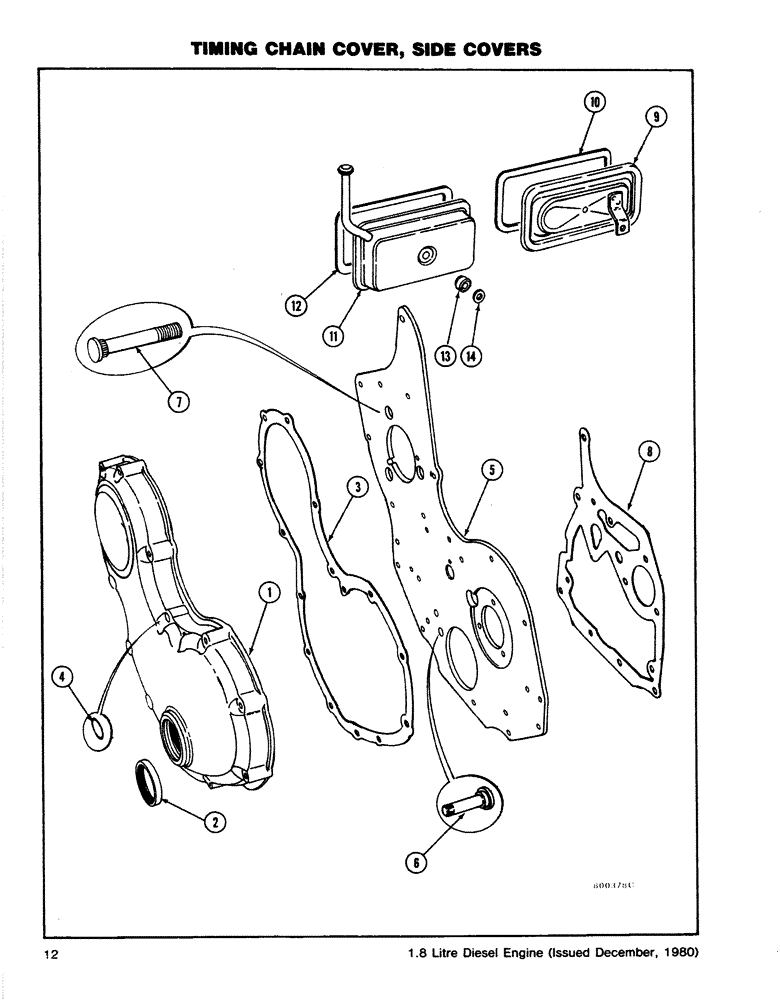

Запчасти Case CASE (12) - TIMING CHAIN COVER, SIDE COVERS (02) - ENGINE

E36535

COVER

ASSEMBLY - Timing Chain, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

COVER

1шт.

2

E36536

SEAL

- Oil

1шт.

E36659

BOLT

- Cover to Front Plate

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

195-521

WASHER,5/16", SAE

- Flat (11/32)

2шт.

E36660

BOLT

- Cover and, Serial Range: Plate-Crankcase

3шт.

E36659

BOLT

- Cover and, Serial Range: Plate-Crankcase

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

195-521

WASHER,5/16", SAE

- Flat (11/32)

6шт.

E36661

BOLT

- Cover and Plate to Bearing Cup

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

195-518

WASHER,1/4", SAE

- Flat (9/32)

2шт.

E36660

BOLT

- Front Cover to Plate/Anchor - Lug, Spring Mounting

1шт.

E36662

BOLT

BOLT - Cover to Mounting Plate

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

195-518

WASHER,1/4", SAE

- Flat (9/32)

2шт.

E36663

BOLT

BOLT - Cover to Plate and Hub

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

195-521

WASHER,5/16", SAE

- Flat (11/32)

2шт.

3

E36537

GASKET

1шт.

4

E36538

O-RING

1шт.

5

E36539

PLATE

- Engine Mounting - Front

1шт.

6

E36540

AXLE PIN

PIN - Pivot Tensioner Shoe

1шт.

7

E36541

BOLT

- Fuel Injection Pump and Hub

3шт.

8

E36542

GASKET

1шт.

E36664

COVER

SCREW -, Serial Range: Plate-Crankcase

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

E36543

COVER ASSY

COVER - Cylinder Side - Front

1шт.

10

E36544

GASKET

1шт.

11

E36545

COVER ASSY

COVER - Cylinder Side - Rear

1шт.

12

E36546

GASKET

1шт.

E36665

SCREW

- Side Cover

1шт.

P36666

FIXED HINGE

SCREW - Side Cover

1шт.

13

E36547

BUSHING

2шт.

14

E36548

WASHER

- Cup

2шт.
