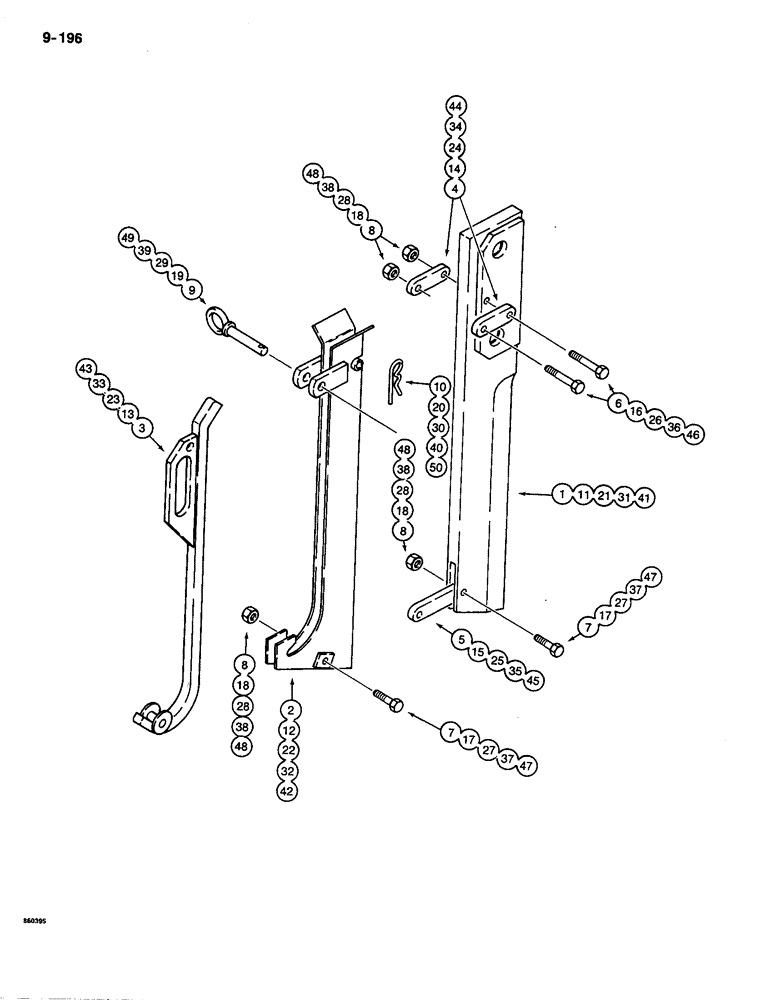

Запчасти Case CASE (9-196) - PLOW BLADES AND CHUTES, STRAIGHT BLADE - 3/8" - 5/8" CLEARANCE (09) - CHASSIS

H936286

BLADE AND CHUTE ASSEMBLY - 3/4" (19 mm) wide blade x 12" (305 mm) cover depth x 3/8" (9.5 mm) chute clearance, machinery item, see figure 2 for for ordering, Includes: Refs. 1-10

1шт.

1

H639427

HALF BLADE

BLADE - 3/4" (19 mm) x 12" (305 mm)

1шт.

H648709

CHAIN (CE)

CHUTE ASSEMBLY - with attaching parts, Includes: Refs. 2-10

1шт.

2

H647404

CHUTE (DOWNWARD)

CHUTE - cable

1шт.

3

H647412

CHUTE ASSY.

GATE - chute

1шт.

4

H116756

DRAG LINK

LINK - chute to blade, upper

2шт.

5

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

6

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

7

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

- hex head, 3/8" - 24 NF x 1-1/4", grade 8, special

2шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

9

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

10

H32292

PIN

HAIR PIN - gate pin

1шт.

H936294

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 12" (305 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, see figure 2 for ordering, Includes: Refs. 11-20

1шт.

11

H639393

BLADE

- 1" (25 mm) x 12" (305 mm)

1шт.

H648741

ATTACHMENT

CHUTE ASSEMBLY - with attaching parts, Includes: Refs. 12-20

1шт.

12

H647446

SCRAPER

CHUTE - cable

1шт.

13

H647453

CHUTE ASSY.

GATE - chute

1шт.

14

H116756

DRAG LINK

LINK - chute to blade, upper

2шт.

15

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

16

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

17

H127357

BOLT

BOLT - hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

18

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

19

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

20

H32292

PIN

HAIR PIN - gate pin

1шт.

H936302

BLADE AND CHUTE ASSEMBLY - 3/4" (19 mm) wide blade x 18" (457 mm) cover depth x 3/8" (9.5 mm) chute clearance, machinery item, see figure 2 for ordering, Includes: Refs. 21-30

1шт.

21

H639435

BLADE

- 3/4" (19 mm) x 18" (457 mm)

1шт.

H648725

CHAIN (CE)

CHUTE ASSEMBLY - with attaching parts, Includes: Refs. 22-30

1шт.

22

H647420

CHUTE (DOWNWARD)

CHUTE - cable

1шт.

23

H647438

CHUTE ASSY.

GATE - chute

1шт.

24

H116756

DRAG LINK

LINK - chute to blade, upper

2шт.

25

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

26

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

27

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

- hex head, 3/8" - 24 NF x 1-1/4", grade 8, special

2шт.

28

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

29

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

30

H32292

PIN

HAIR PIN - gate pin

1шт.

H936310

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 18" (457 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, see figure 2 for ordering, Includes: Refs. 31-40

1шт.

31

H639401

BLADE

- 1" (25 mm) x 18" (457 mm)

1шт.

H648766

ATTACHMENT

CHUTE ASSEMBLY - with attaching parts, Includes: Refs. 32-40

1шт.

32

H647461

CHAIN (AG)

CHUTE - cable

1шт.

33

H647479

CHUTE ASSY.

GATE - chute

1шт.

34

H116756

DRAG LINK

LINK - chute to blade, upper

2шт.

35

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

36

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

37

H127357

BOLT

BOLT - hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

38

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

39

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

40

H32292

PIN

HAIR PIN - gate pin

1шт.

H936328

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 24" (610 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, see figure ordering, Includes: Refs. 41-50

1шт.

41

H639419

BLADE

- 1" (25 mm) x 24" (610 mm)

1шт.

H648782

BLADE

CHUTE ASSEMBLY - with attaching parts, Includes: Refs. 42-50

1шт.

42

H647487

CHUTE (DOWNWARD)

CHUTE - cable

1шт.

43

H647495

LARGE PLATE

GATE - chute

1шт.

44

H116756

DRAG LINK

LINK - chute to blade, upper

2шт.

45

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

46

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

47

H127357

BOLT

BOLT - hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

48

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

49

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

50

H32292

PIN

HAIR PIN - gate pin

1шт.
