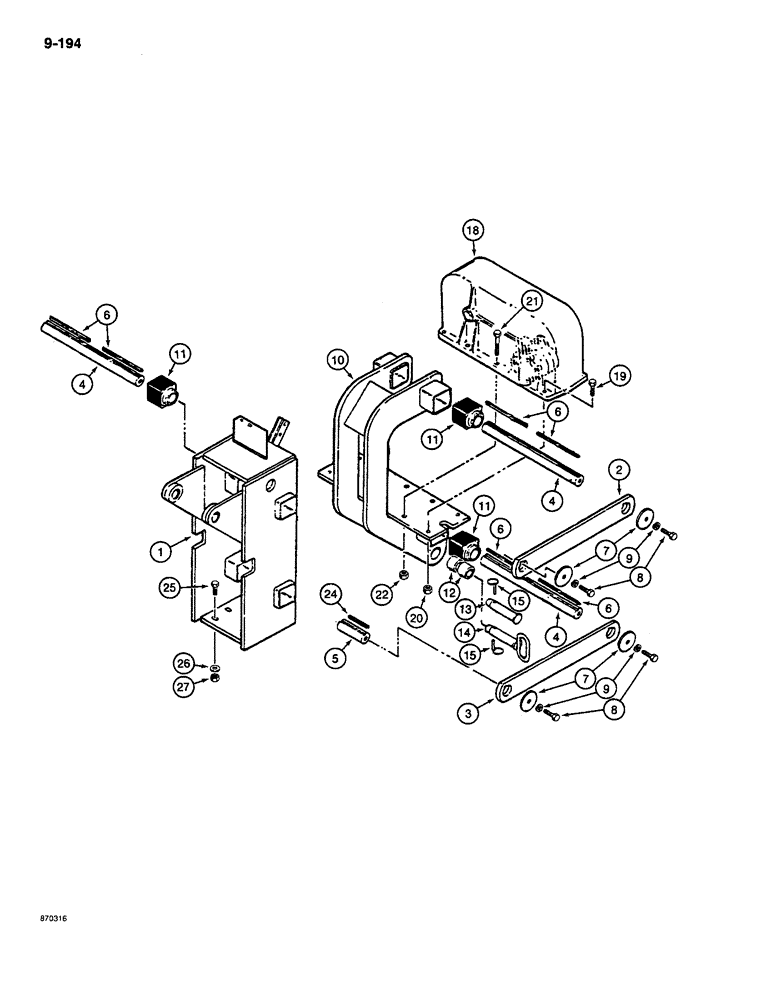

Запчасти Case CASE (9-194) - PLOW BLADE MOUNTING FRAME, GEARBOX, AND LINKS (09) - CHASSIS

1

REF

INSTRUCTION

FRAME ASSEMBLY - plow lift, see figure 9-192

1шт.

2

H187583

ARM

LINK - lift frame to blade mounting frame, upper

2шт.

3

H334847

BAR

LINK - lift frame to blade mounting frame, lower

2шт.

4

H241398

SHAFT

- link mounting, long

4шт.

5

H190181

SHAFT

- link mounting, short

2шт.

6

H393785

KEY

- shaft retaining

8шт.

7

H165720

WASHER

- flat, 1/2", special

8шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

10

H661025

MOUNTING PARTS

FRAME ASSEMBLY - blade and gearbox mounting, Includes: Refs. 11, 12

1шт.

11

H235077

BUSHING

- rubber, link attaching

4шт.

12

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

- blade attaching

4шт.

13

H393843

PIN

- blade attaching, upper

1шт.

14

H651000

PIN

- blade attaching, lower

1шт.

15

A30338

PIN

- klik

2шт.

18

H530204

GEAR WHEEL

GEARBOX ASSEMBLY - plow, parts list figure 9-216

1шт.

19

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

20

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

21

113-509

BOLT,Hex, 9/16" - 12 x 2", Gr 5

6шт.

22

131-1218

LOCK NUT,9/16"-12, GC

NUT, LOCK, 9/16"-12, GC

6шт.

23

H654806

GEAR WHEEL

MOTOR ASSEMBLY - plow, parts list figure 8-158, gearbox drive parts and plow motor mounting on figure 9-216

1шт.

24

H202192

KEY

- short shaft

2шт.

25

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

26

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

27

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.
