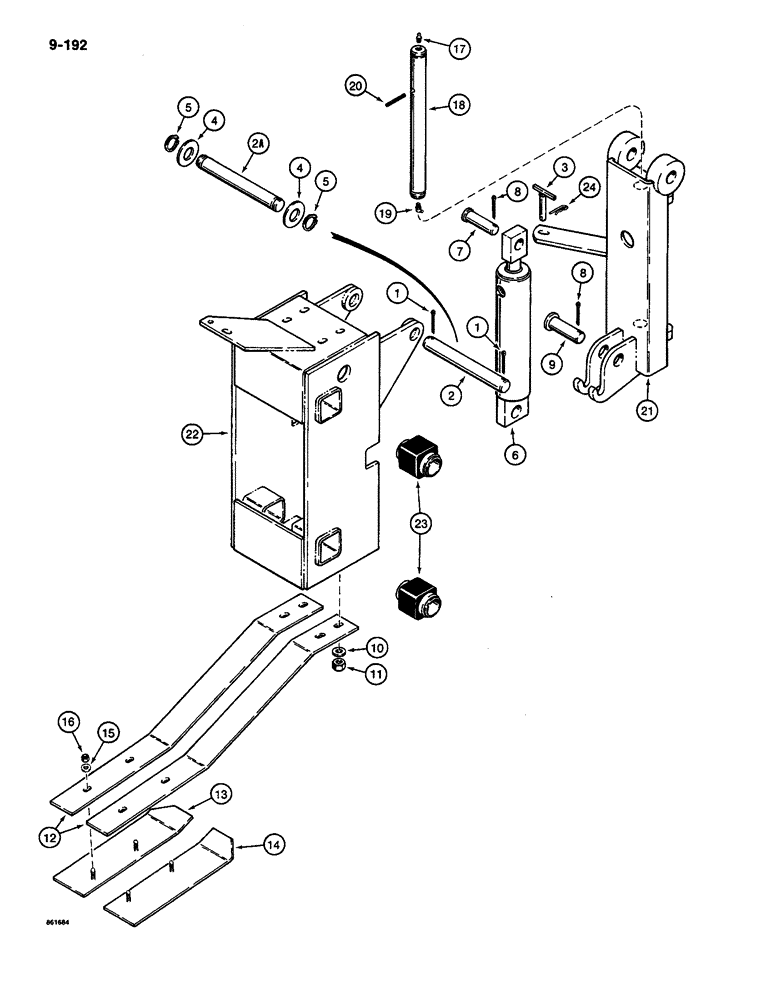

Запчасти Case CASE (9-192) - PLOW PIVOT FRAME, LIFT FRAME, AND CYLINDER (09) - CHASSIS

1

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), , If used 1/4" x 1 3/4"

2шт.

2

H241406

PIN

- lift frame to pivot frame, no longer available, order refs. 2A, 4, and 5 for service

1шт.

2a

H382457

AXLE PIN

PIN - lift frame to pivot frame

1шт.

3

H582585

LOCK

PIN - locking, pivot frame

1шт.

4

H113241

BEARING WASHER

SHIM - 1/8" (3.5 mm) thick, if used

2шт.

5

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin, if used #125, Ext

2шт.

6

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - plow lift, parts list figure 8-144

1шт.

7

H143974

CLEVIS COUPLING

CLEVIS PIN - 1" x 2-7/8" long

1шт.

8

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

9

H126052

CLEVIS

PIN - cylinder to pivot frame

1шт.

10

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

11

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

12

H393694

SPRING

- lift frame, ground leveler

2шт.

13

H634980

SHOE

PLATE - spring shoe, left-hand

1шт.

14

H634998

SHOE

PLATE - spring shoe, right-hand

1шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

16

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

18

H241133

AXLE PIN

ROD - pivot

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, special short, 1/8" NPT

1шт.

20

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

21

H635128

SUPPORT

FRAME - plow pivot

1шт.

22

H634964

FRAME

- plow lift

1шт.

THE L.H. LUG/W IS PART H634972 AND THE R.H. LUG/W IS PART H635102

1шт.

23

H235077

BUSHING

- plow lift frame

4шт.

24

A70250

PIN

- hair

1шт.

THE TAB LOCATED BELOW THIS REF, IF THIS TAB IS POINTED IN OPPOSITE DIRECTION PART IS H664177

1шт.
