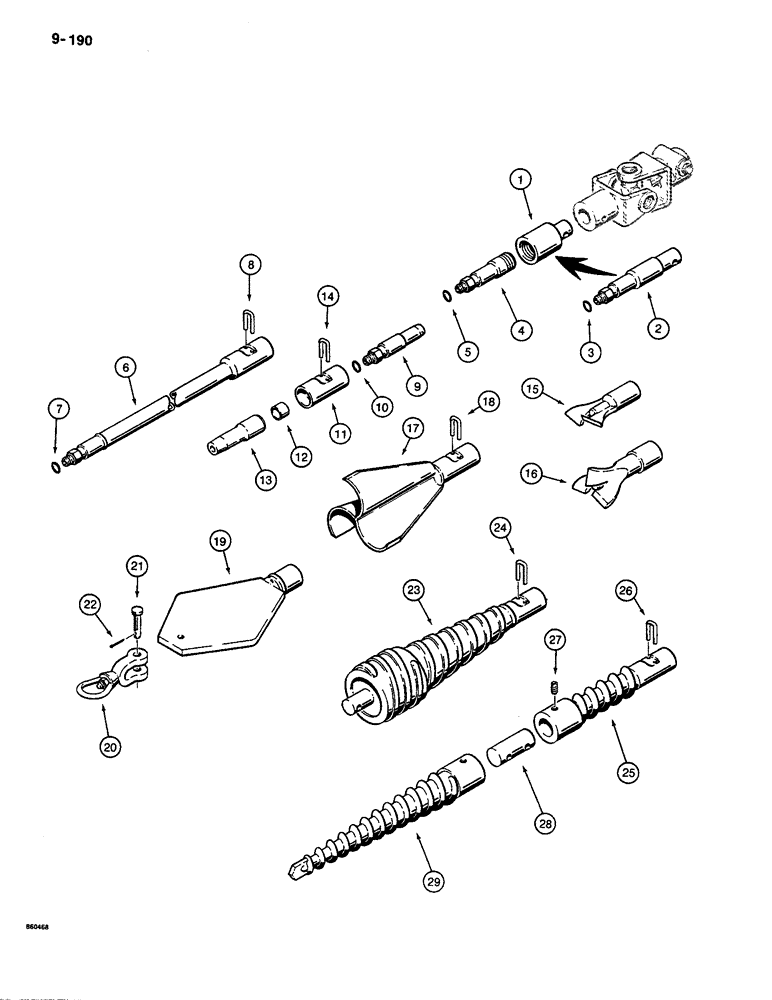

Запчасти Case CASE (9-190) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS (09) - CHASSIS

1

H83352

ADAPTER

- 1" NPT male, dry boring, Serial Range: attaches-U-joint

1шт.

2

H646901

ADAPTER

- dry boring, quick lock male, Serial Range: attaches-U-joint

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

H522383

ADAPTER

- 1" NPT male to quick lock male

1шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

6

H672563

EXTENSION

STEM - drill, quick lock, 5 foot long

1шт.

6

H672562

ADAPTER

STEM - drill, quick lock, 10 foot long

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, drill stem

1шт.

8

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

9

H434273

NIPPLE, LUBE

COUPLER - quick lock, male

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, coupler

1шт.

H672594

COUPLING

COUPLER ASSEMBLY - quick lock, female, Includes: Refs. 11-13

1шт.

11

H434272

COUPLING

COUPLER - quick lock, female

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - shaft, O-ring seat, order H672594 coupler assembly

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT - stub, order H672594 coupler assembly

1шт.

14

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

15

H518837

BIT

DRILL BIT - 2", two blade, 1" NPT female

1шт.

15

H518910

BIT

DRILL BIT - 3", two blade, 1" NPT female

1шт.

16

H519249

BIT

DRILL BIT - 3", three blade, 1" NPT female

1шт.

17

H522441

REAMER

BACKREAMER - 8", quick lock female

1шт.

17

H522466

REAMER

BACKREAMER - 12", quick lock female

1шт.

18

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

19

H519504

REAMER

- fish plate, 4"

1шт.

19

H519652

REAMER

- fish plate, 6"

1шт.

19

H528497

REAMER

- fish plate, 8"

1шт.

20

H88195

FASTENER

SWIVEL - reamer

1шт.

21

H32284

AXLE PIN

CLEVIS PIN - special, 3/8" x 1-3/4" long

1шт.

22

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

23

H522409

REAMER

- compaction, 3-3/4", quick lock female

1шт.

24

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

25

H522433

BIT

- compaction, 2", quick lock female

1шт.

26

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

27

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket head, 3/8" - 16 NC x 1-3/4"

2шт.

28

H85233

COUPLING

COUPLER - bit

1шт.

29

H84988

BIT

- compaction, end, 2"

1шт.
