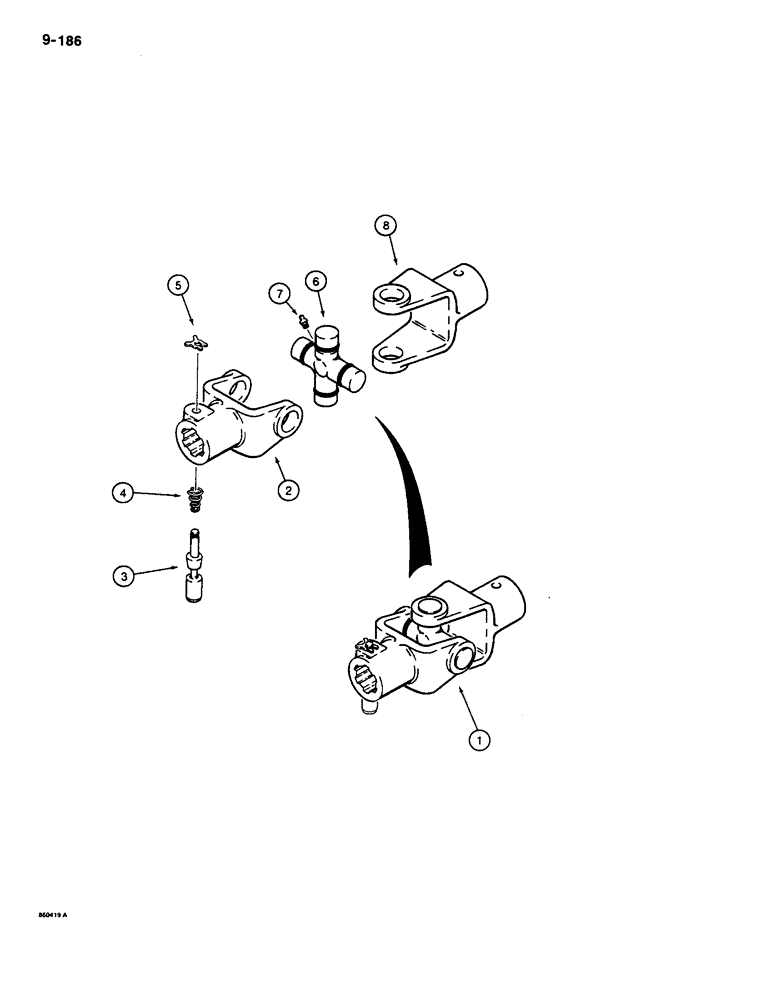

Запчасти Case CASE (9-186) - HYDRA-BORER ATTACHMENT UNIVERSAL JOINT (09) - CHASSIS

1

H511113

JOINT

U-JOINT ASSEMBLY - hydra-borer attachment, service with component parts below, Includes: Refs. 2-8

1шт.

H71142

YOKE

ASSEMBLY - splined, Includes: Refs. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE - splined

1шт.

H658179

SET OF PARTS

KIT - U-joint retaining, Includes: Refs. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - retainer

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

5

NSS

NOT SOLD SEPARAT

SNAP RING - pin retaining

1шт.

H71167

JOURNAL

CROSS ASSEMBLY - U-joint, Includes: Refs. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

CROSS - U-joint

1шт.

7

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight, Taper 1/4"-28 NPT x .94" lg

1шт.

8

H71159

YOKE

- boring attachments

1шт.

H658179 KIT HAS 1 3/4" LONG PIN. IF CUSTOMER PIN IS 2 1/4", KIT IS 182951A1. PER VENDOR, 182951A1 IS CORRECT KIT FOR THE H511113 U-JOINT ASSY.

1шт.
