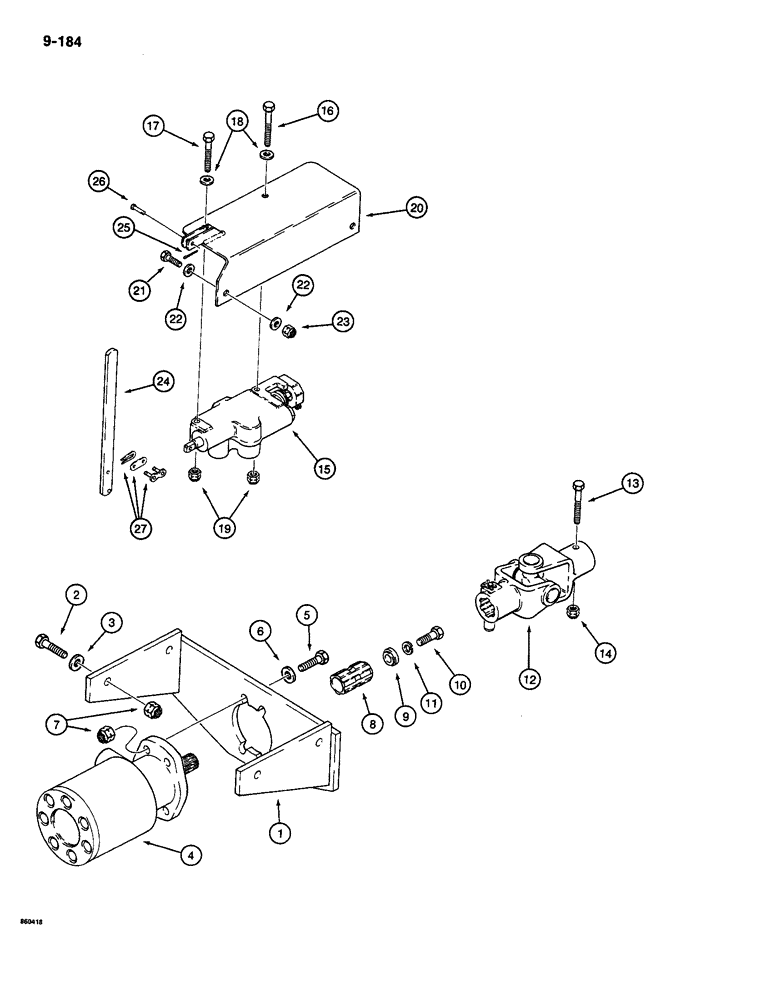

Запчасти Case CASE (9-184) - HYDRA-BORER MOUNTING (09) - CHASSIS

1

H632448

MOUNTING PARTS

MOUNT - motor, hydra-borer

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

4

D120048

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydra-borer, parts list figure 8-152

1шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

4шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

8шт.

8

H312314

ADAPTER

- splined, motor shaft

1шт.

9

H314054

RETAINER

- adapter

1шт.

10

114-400

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- hex head, 1/2" - 20 NF x 2-1/4", plated

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

H511113

JOINT

U-JOINT ASSEMBLY - hydra-borer drive, parts list figure 9-186

1шт.

13

113-2259

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

1шт.

14

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

15

H544718

LOCK VALVE

CONTROL VALVE ASSEMBLY - hydra-borer, parts list figure 8-148

1шт.

16

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

17

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

18

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

20

H664730

SUPPORT

BRACKET - valve mounting

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

23

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

24

H377325

LEVER

- valve control

1шт.

25

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

26

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

1шт.

27

B12505

LINK

- connector, complete

1шт.
