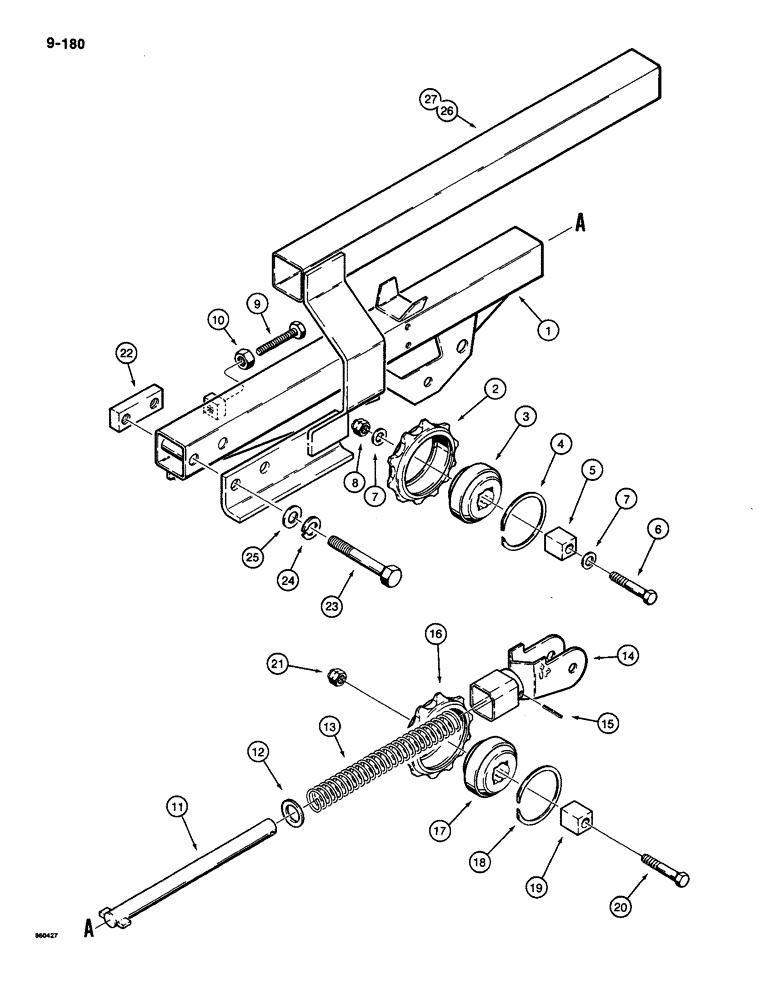

Запчасти Case CASE (9-180) - TRENCHER SPROCKET BOOM AND MOUNTING (09) - CHASSIS

1

H564377

BOOM

- sprocket type, 24" (610 mm), if used

1шт.

1

H564849

BOOM

- sprocket type, 36" (914 mm), if used

1шт.

2

H33563

DRIVE SPROCKET

SPROCKET - boom, intermediate

1шт.

3

H747139

BALL BEARING

BEARING - sprocket

1шт.

4

H33837

RING

RETAINING RING - bearing

1шт.

5

H232645

BUSHING

- square, sprocket bearing

1шт.

6

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

7

195-108

WASHER,5/8"

- flat, , plated 5/8"

2шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

9

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

- adjusting

1шт.

10

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

11

H509349

TUBE

SHAFT - spring, end sprocket

1шт.

12

H34199

WASHER

- spring retaining

1шт.

13

H56713

VALVE SPRING

SPRING - end sprocket

1шт.

14

H33829

BRACKET

- end sprocket mounting

1шт.

15

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, , Bracket 3/8" x 2", Slotted

1шт.

16

H33563

DRIVE SPROCKET

SPROCKET - end

1шт.

17

H747139

BALL BEARING

BEARING - end sprocket

1шт.

18

H33837

RING

RETAINING RING - bearing

1шт.

19

H232645

BUSHING

- square, sprocket bearing

1шт.

20

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

21

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

22

H306191

PLATE ASSY.

PLATE - lock, boom pivot, Serial Range: bracket-boom

1шт.

23

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

24

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

2шт.

26

REF

INSTRUCTION

GUARD - digging chain, used with 24" (610 mm) boom, machinery item, see figure 2 for ordering

1шт.

27

REF

INSTRUCTION

GUARD - digging chain, used with 36" (914 mm) boom, machinery item, see figure 2 for ordering

1шт.
