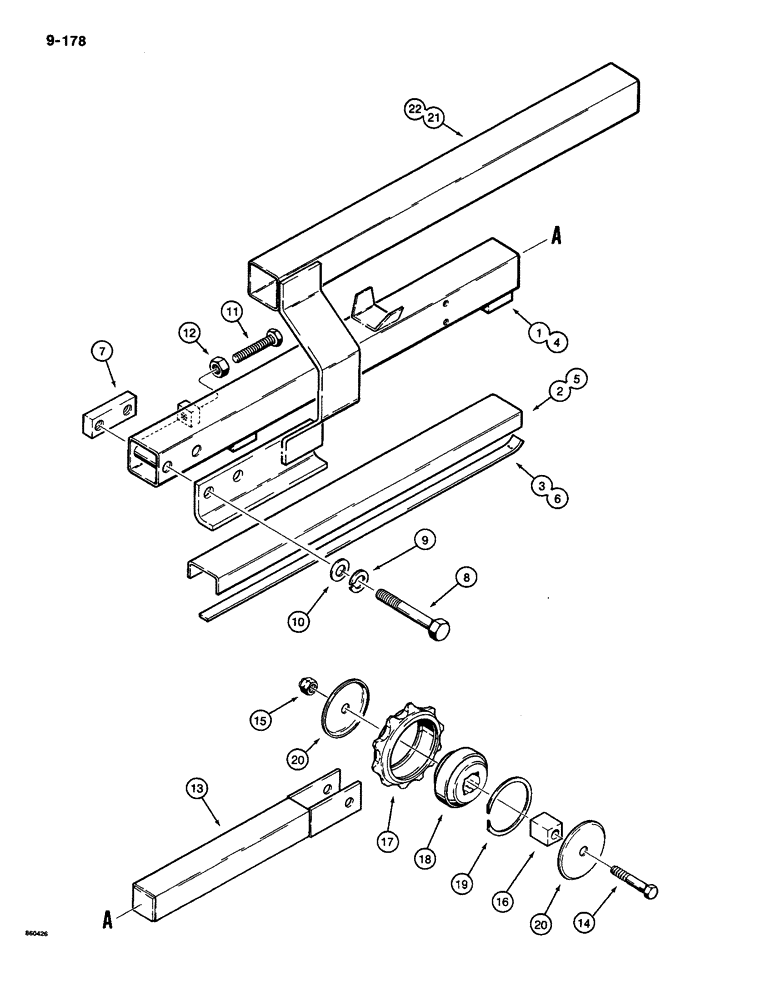

Запчасти Case CASE (9-178) - TRENCHER CHANNEL BOOM AND MOUNTING (09) - CHASSIS

1

H616086

BOOM

ASSEMBLY - channel type, 24" (610 mm), if used, Includes: Refs. 2, 3

1шт.

2

H315523

GUIDE

CHANNEL - lower, weld on

1шт.

3

H315515

GUIDE

WEAR PLATE - weld to lower channel

1шт.

4

H613075

BOOM

ASSEMBLY - channel type, 36" (914 mm), if used, Includes: Refs. 5, 6

1шт.

5

H308585

GUIDE

CHANNEL - lower, weld on

1шт.

6

H309401

GUIDE

WEAR PLATE - weld to lower channel

1шт.

7

H306191

PLATE ASSY.

PLATE - lock

1шт.

8

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

2шт.

11

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

BOLT - special adjusting, 1/2" - 13 NC x 3-3/4"

1шт.

12

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

13

H613083

END ASSY.

END - channel boom, weld on

1шт.

14

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

15

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

16

H232645

BUSHING

- square

1шт.

17

H33563

DRIVE SPROCKET

SPROCKET - end

1шт.

18

H747139

BALL BEARING

BEARING - sprocket

1шт.

19

H33837

RING

RETAINING RING - sprocket bearing

1шт.

20

H350785

WASHER

- special

2шт.

21

REF

INSTRUCTION

GUARD - digging chain, used with 24" (610 mm) boom assembly, machinery item, see figure 2 for ordering

1шт.

22

REF

INSTRUCTION

GUARD - digging chain, used with 36" (914 mm) boom assembly, machinery item, see figure 2 for ordering

1шт.
