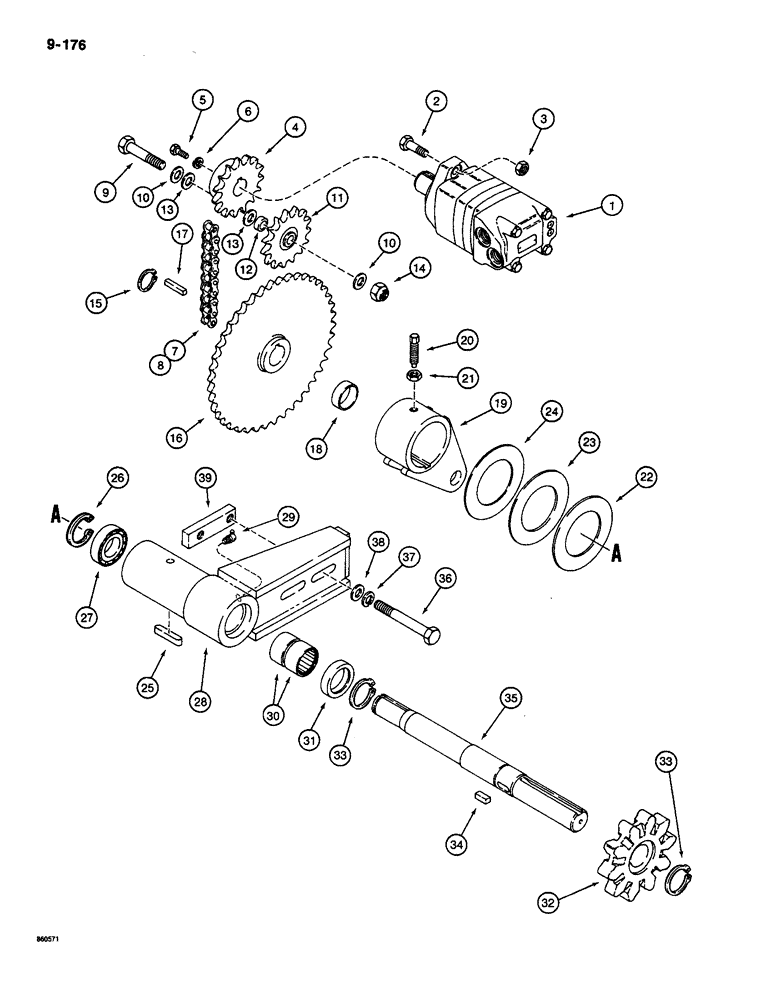

Запчасти Case CASE (9-176) - TRENCHER DRIVE LINE MOUNTING (09) - CHASSIS

1

H660373

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - trencher drive, parts list figure 8-142

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

4

H660217

DRIVE SPROCKET

SPROCKET - drive motor

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

H758862

CHAIN (AG)

CHAIN ASSEMBLY - trencher drive, Includes: Ref. 8

1шт.

8

D83132

LINK

- connecting, chain

1шт.

9

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

10

195-108

WASHER,5/8"

- flat, , plated 5/8"

2шт.

11

H747386

DRIVE SPROCKET

SPROCKET - idler

1шт.

12

H114140

SPACER

- idler sprocket

1шт.

13

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special

2шт.

14

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

15

A7409

SNAP RING,#137, Ext

RING, Snap, , digging chain drive sprocket #137, Ext

1шт.

16

H415554

DRIVE SPROCKET

SPROCKET - digging chain drive

1шт.

17

H415604

KEY

-, Serial Range: sprocket-shaft

1шт.

18

H415562

SPACER

- sprocket

1шт.

19

H413492

ARM

CRANK - boom

1шт.

20

H33746

SET SCREW,1/2" - 20 x 2 1/4"

SET SCREW - boom crank

1шт.

21

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

22

H260943

SHIM,.135" Thk

Crank (3.416 mm) .135" Thk

1шт.

23

H260950

SHIM,.060" Thk

Crank (1.519 mm) .060" Thk

1шт.

24

H261834

SHIM,.030" Thk

Crank (0.762 mm) .030" Thk

1шт.

25

H413625

KEY

-, Serial Range: crank-boom

1шт.

26

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , brg 2.44", Int, #244

1шт.

27

38742

BALL BEARING

- boom

1шт.

28

H413419

ARM

BRACKET - mounting, boom pivot

1шт.

29

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, special short, 1/8" NPT

1шт.

30

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

BEARING - boom

2шт.

31

H758854

OIL SEAL

- boom

1шт.

32

H404004

DRIVE SPROCKET

SPROCKET - idler, digging chain

1шт.

33

R13338

SNAP RING,#150, Ext

RING, Snap, , idler sprocket to shaft #150, Ext

2шт.

34

H404012

KEY

- idler, Serial Range: sprocket-shaft

1шт.

35

H407528

SHAFT

- trencher drive

1шт.

36

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

37

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

38

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

2шт.

39

H306191

PLATE ASSY.

PLATE - lock

1шт.
