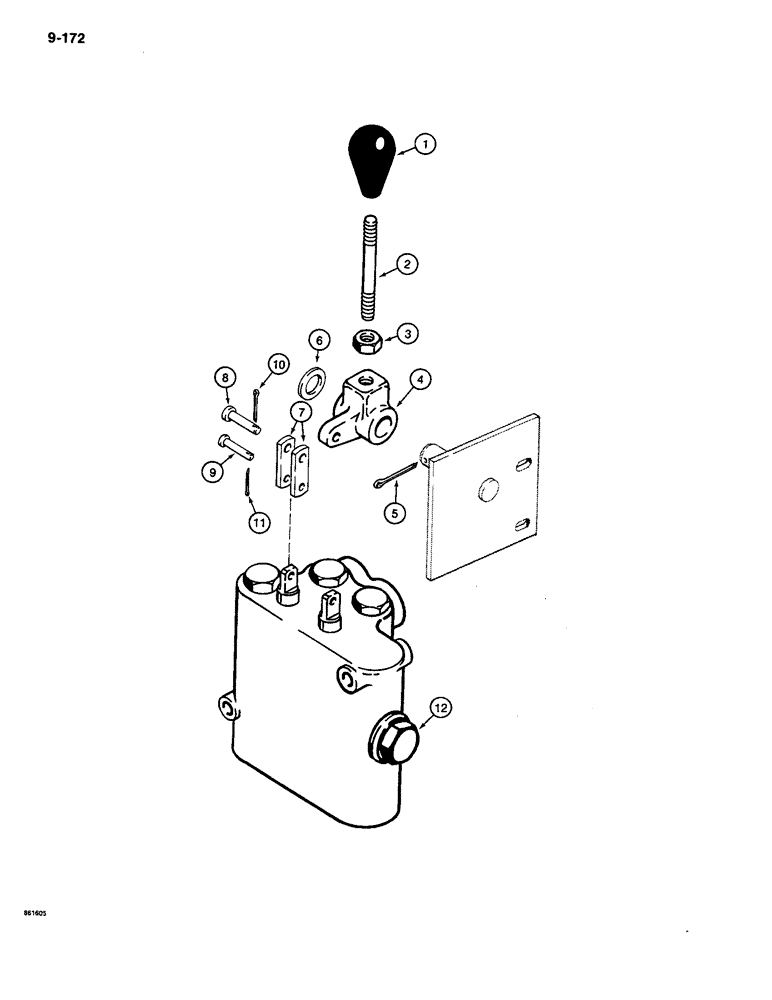

Запчасти Case CASE (9-172) - ATTACHMENT LIFT CONTROL (09) - CHASSIS

1

A14051

GRIP

KNOB - attachment lift control

1шт.

2

H242701

HANDLE

- attachment lift control

1шт.

3

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

4

H275255

CRANK LEVER

LEVER - control handle

1шт.

5

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

6

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

1шт.

7

H338061

LINK

- attachment lift

2шт.

8

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long

1шт.

9

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

1шт.

10

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

12

H550079

LOCK VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, parts list figure 5-84

1шт.
