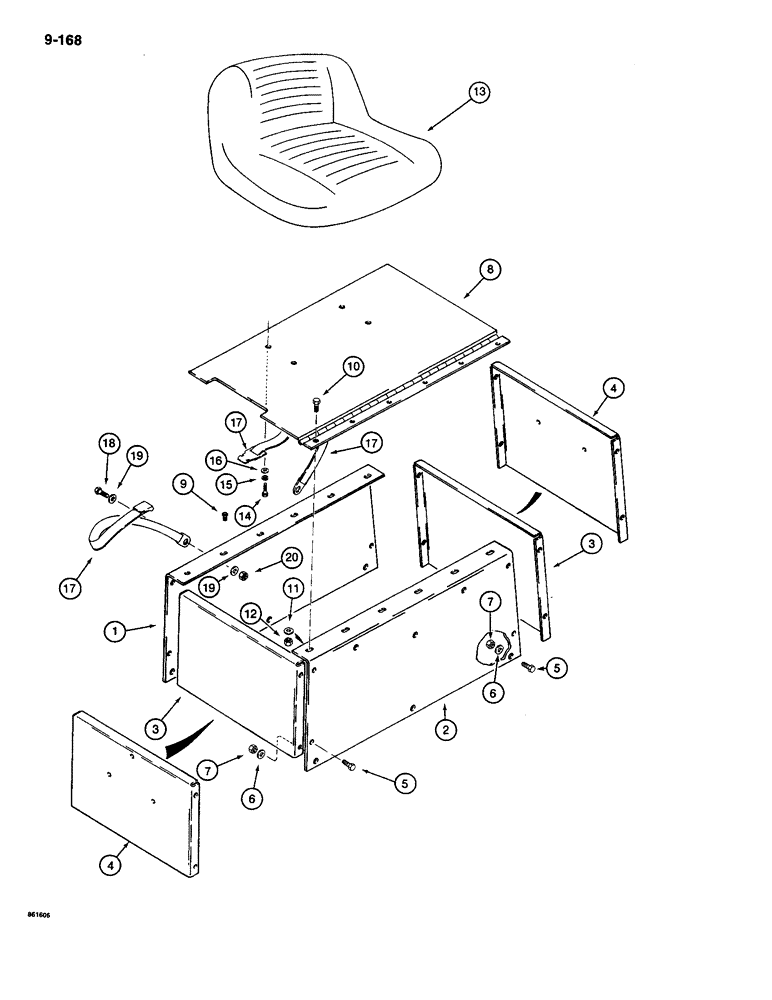

Запчасти Case CASE (9-168) - SEAT AND SEAT MOUNTING (09) - CHASSIS

1

H629485

PANEL, SIDE

PANEL- left-hand side

1шт.

2

H629493

PANEL, SIDE

PANEL - right-hand side

1шт.

3

H343863

COVER

PANEL - front and rear cover, no longer available order ref. 4 for service

2шт.

4

H392209

PANEL

- front and rear cover

2шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

6

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

14шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

14шт.

8

H629477

MOUNTING PARTS

PLATE - seat mounting

1шт.

9

H66522

BUMPER

- rubber, hood

4шт.

10

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

11

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

6шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

13

REF

INSTRUCTION

SEAT ASSEMBLY - operators, parts list figure 9-170

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

17

D75997

SAFETY BELT ,1.80" W

1.80" W

1шт.

18

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

19

195-105

WASHER,7/16"

- flat, , plated 7/16"

2шт.

20

131-1170

LOCK NUT,7/16"-20, GA

NUT, LOCK, 7/16"-20, GA

2шт.
