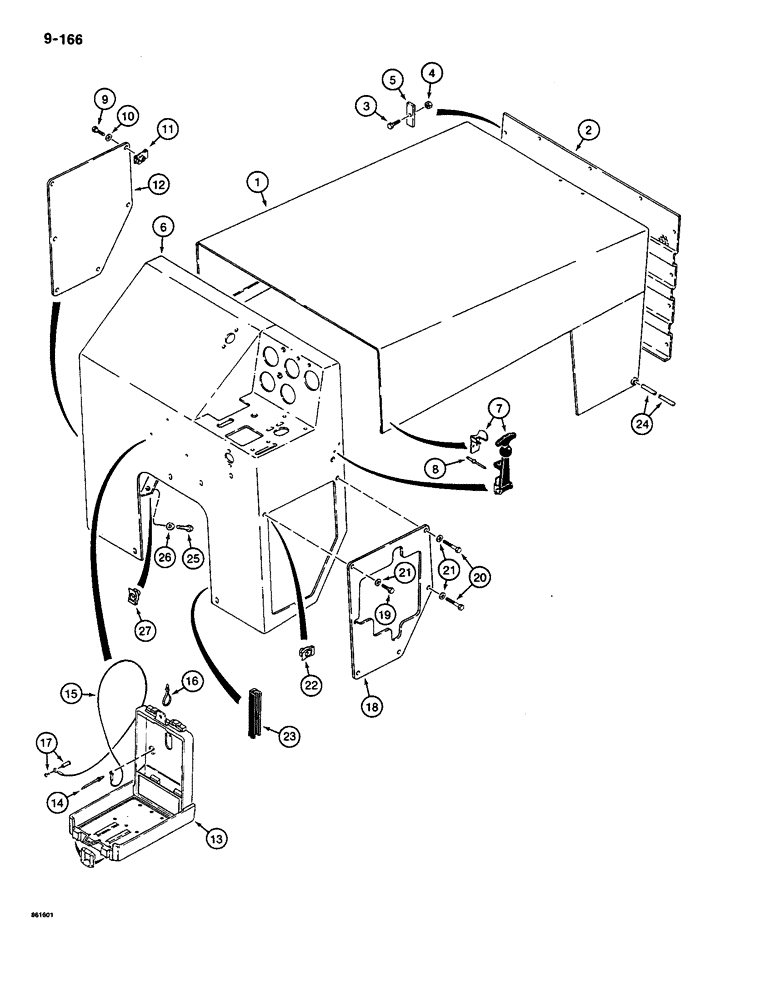

Запчасти Case CASE (9-166) - HOOD, GRILLE, AND CONSOLE (09) - CHASSIS

1

H626093

HOOD

ASSEMBLY - tractor

1шт.

2

H333930

GRILLE

- radiator shroud

1шт.

3

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

11шт.

4

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

11шт.

5

H359265

BAR

RETAINER - grille

11шт.

6

H625665

CONSOLE

ASSEMBLY - tractor

1шт.

7

H628263

LATCH ASSY.

LATCH - hood

2шт.

8

151-539

RIVET,Pop, 3/16" x .450"

POP RIVET - 3/16"

8шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

6шт.

11

H346650

NUT

U-NUT - 5/16" - 18 NC, special

6шт.

12

H353292

PANEL, SIDE

PANEL - console, right-hand

1шт.

13

R46464

CASE

BOX - operators manual

1шт.

14

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16"

3шт.

15

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

R46463

SCREW,0.18" x 0.75"

POST - manual retaining, 3/16" x 3/4" long, used with R46464 manual box

1шт.

18

H353284

PANEL, SIDE

PANEL - console, left-hand, if used

1шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

4шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

21

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

6шт.

22

H346650

NUT

U-NUT - 5/16" - 18 NC, special, if used

6шт.

23

REF

INSTRUCTION

TRIM - edge, 3/8" x 1/2" x 21" (10 mm x 13 mm x 533 mm) long, cut from F42827, see below

1шт.

24

H344275

PIN

- hood, pivot

1шт.

25

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

26

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

27

H346650

NUT

U-NUT - 5/16" - 18 NC, special

4шт.

F42827

TRIM,2946.4mm L

TRIM - bulk, 3/8" x 1/2" x 116" (10 mm x 19 mm x 2946 mm) long

1шт.
