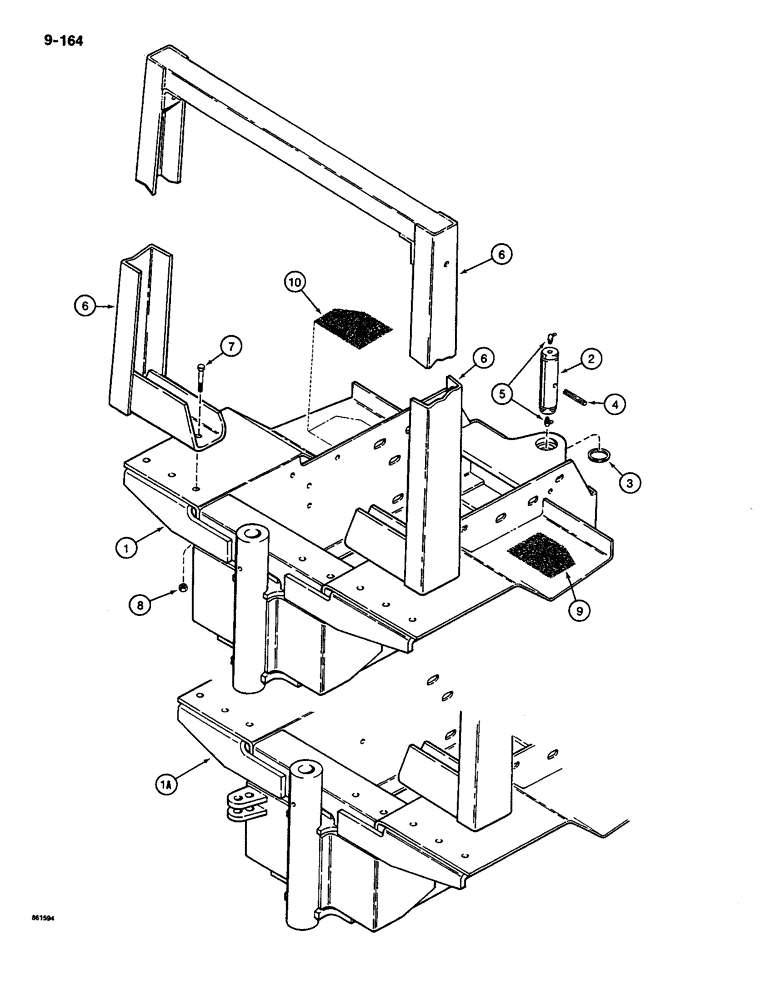

Запчасти Case CASE (9-164) - REAR FRAME AND ROPS CANOPY (09) - CHASSIS

1

H664169

FRAME - rear, without welded pivot lock lug, if used

1шт.

1a

H629097

FRAME

- rear, with welded pivot lock lug, if used

1шт.

2

H371054

PIVOT PIN

PIN - pivot

1шт.

3

H257915

SHIM,0.813mm Thk

(.031"), Pivot pin 0.813mm Thk

1шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

6

REF

INSTRUCTION

ROPS CANOPY - machinery item, see page 2 for ordering

1шт.

7

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

8

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

6шт.

9

H326124

ADHESIVE STRIP

PAD - nonskid, right-hand

1шт.

10

H326132

ADHESIVE STRIP

PAD - nonskid, left-hand

1шт.
