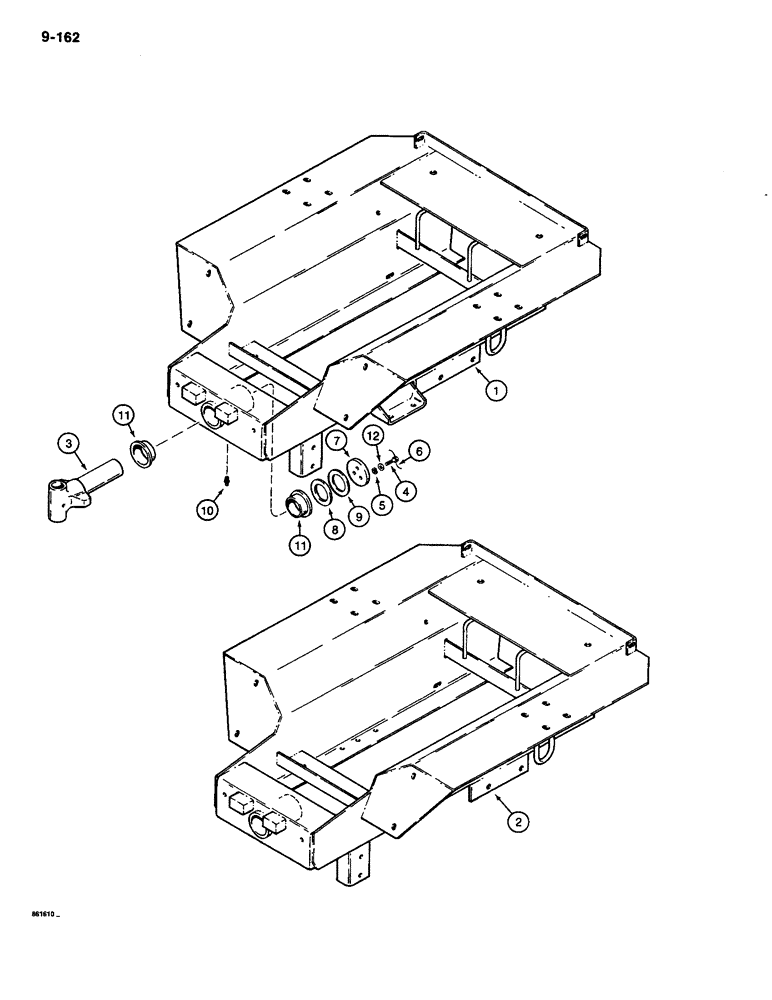

Запчасти Case CASE (9-162) - FRONT FRAME (09) - CHASSIS

1

H625657

FRAME - front, used on models without axle mounted through fender frame

1шт.

2

H664151

FRAME - front, used on models with axle mounted through fender frame

1шт.

3

H359984

PIVOT ASSY.

SHAFT - pivot

1шт.

4

H95877

BOLT

BOLT - special

3шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

391-620

LOCK,#16 Ga x 12"

WIRE - lock

1шт.

7

H182543

CYLINDER END CAP

CAP - pivot shaft

1шт.

8

H191155

SHIM,.062" Thk

(1.57 mm), Pivot shaft .062" Thk

2шт.

9

H191148

SHIM,.031" Thk

(0.79 mm), Pivot shaft .031" Thk

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

11

H257675

BUSHING,54.3mm ID x 69.85mm OD x 25.4mm L

- pivot shaft

2шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

3шт.
