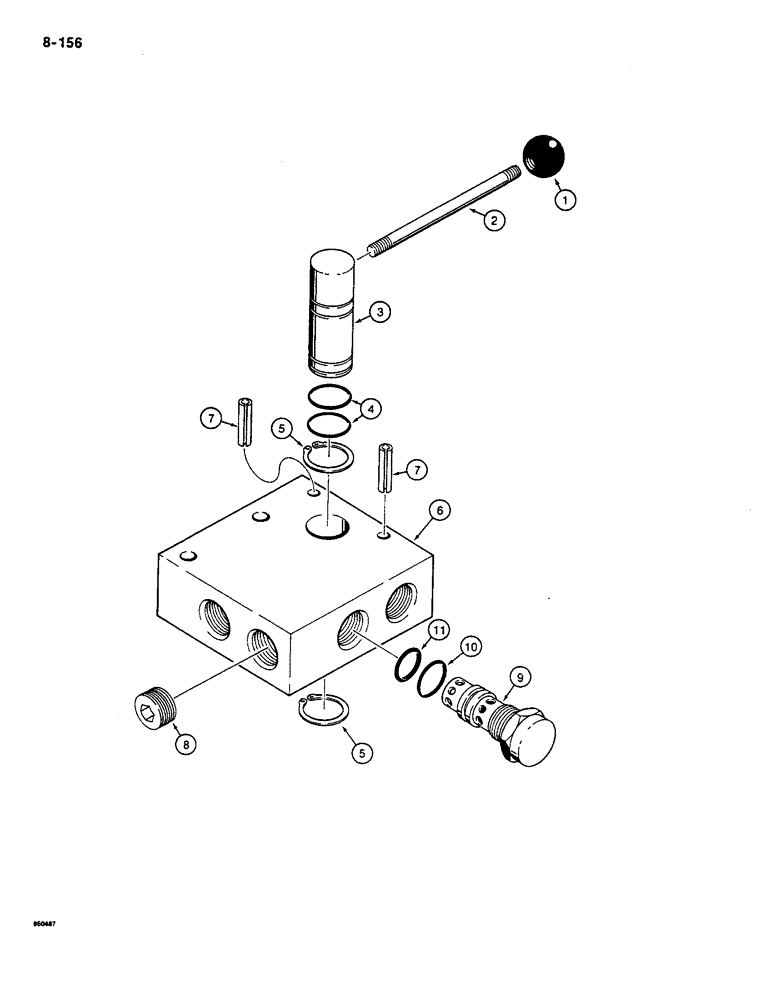

Запчасти Case CASE (8-156) - PLOW CONTROL VALVE (08) - HYDRAULICS

H632588

SELECTOR

CONTROL VALVE ASSEMBLY - plow, Includes: Refs. 1-11

1шт.

1

H249839

KNOB

- handle

1шт.

2

H249847

HANDLE

- valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- spool seal

2шт.

5

B18206

SNAP RING,#87, Ext

RING, Snap, , spool #87, Ext

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

7

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

8

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

9

H584326

VALVE

RELIEF VALVE - control valve

1шт.

10

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- relief valve, large

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- relief valve, small

1шт.
