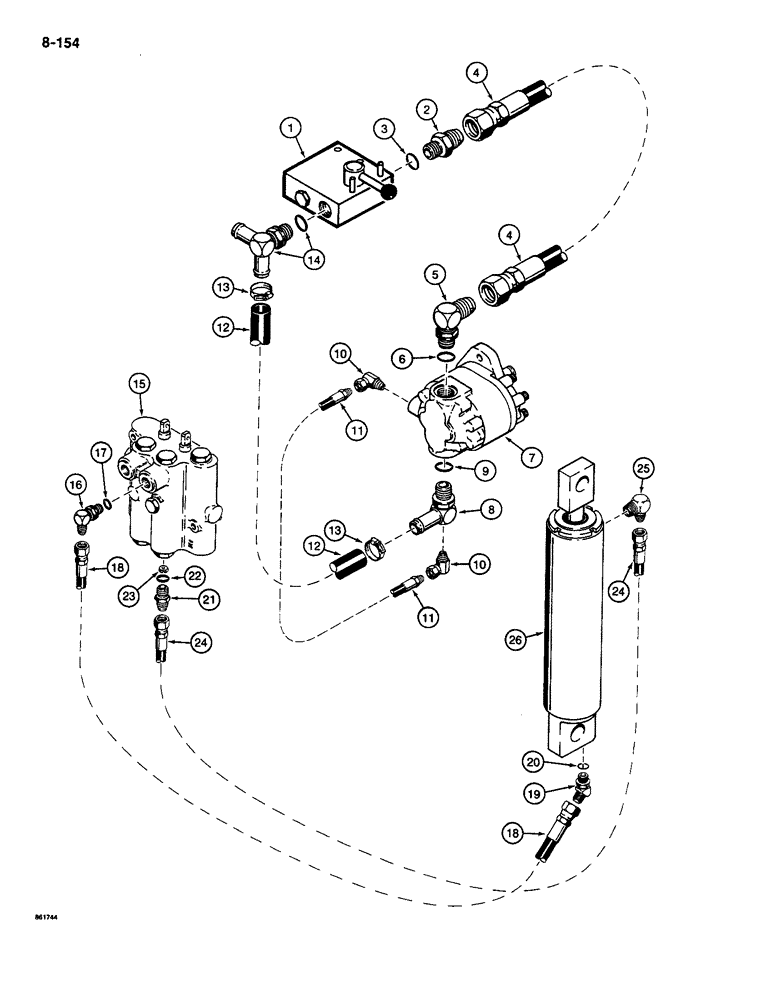

Запчасти Case CASE (8-154) - PLOW HYDRAULIC CIRCUIT, USED ON MODELS WITHOUT A TRENCHER (08) - HYDRAULICS

1

H632588

SELECTOR

CONTROL VALVE ASSEMBLY - plow, parts list figure 8-156

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

H433072

HOSE ASSY.

HOSE - 25-5/8" (650 mm) long, valve to plow motor

1шт.

5

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

7

H654806

GEAR WHEEL

MOTOR ASSEMBLY - plow, parts list figure 8-158

1шт.

8

H317438

FITTING

ELBOW - 90 degree, special, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

10

218-924

ELBOW,90 Degree, 1/4" NPTF Male x 1/4" NPSM Fem Sw

- 90 degree, swivel

2шт.

11

H45708

HOSE,0.25" ID x 12.00", SAE 100R3

Motor Drain to Elbow 0.25" ID x 12.00", SAE 100R3

1шт.

12

H212951

HOSE

- 3/4" (19 mm) ID x 22" (559 mm) long, return to tee, cut from H119495 hose, see below

1шт.

13

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

14

REF

INSTRUCTION

TEE - special, return hoses, see reference number 2, figure 8-136 for oil cooler lines

1шт.

15

H550079

LOCK VALVE

CONTROL VALVE ASSEMBLY - steering and attachment, parts list figure 5-84

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 17

1шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

18

H433051

HYDRAULIC HOSE,6.35 mm ID x 1550.00 mm, SAE 100R2

HOSE - 60" (1524 mm) long, "A" port of valve to closed end of lift cylinder

1шт.

19

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 20

1шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, male, Incl. Ref. 22

1шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

23

H746875

SCREW

ORIFICE - "B" port of control valve

1шт.

24

H433052

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm, SAE 100R2

HOSE - 72" (1825 mm) long, "B" port of valve to rod end of lift cylinder

1шт.

25

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

26

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - plow lift, parts list figure 8-144

1шт.

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

- Use to make Ref. 12 0.75" ID x 27.00", SAE 30R2 Type 2

1шт.
