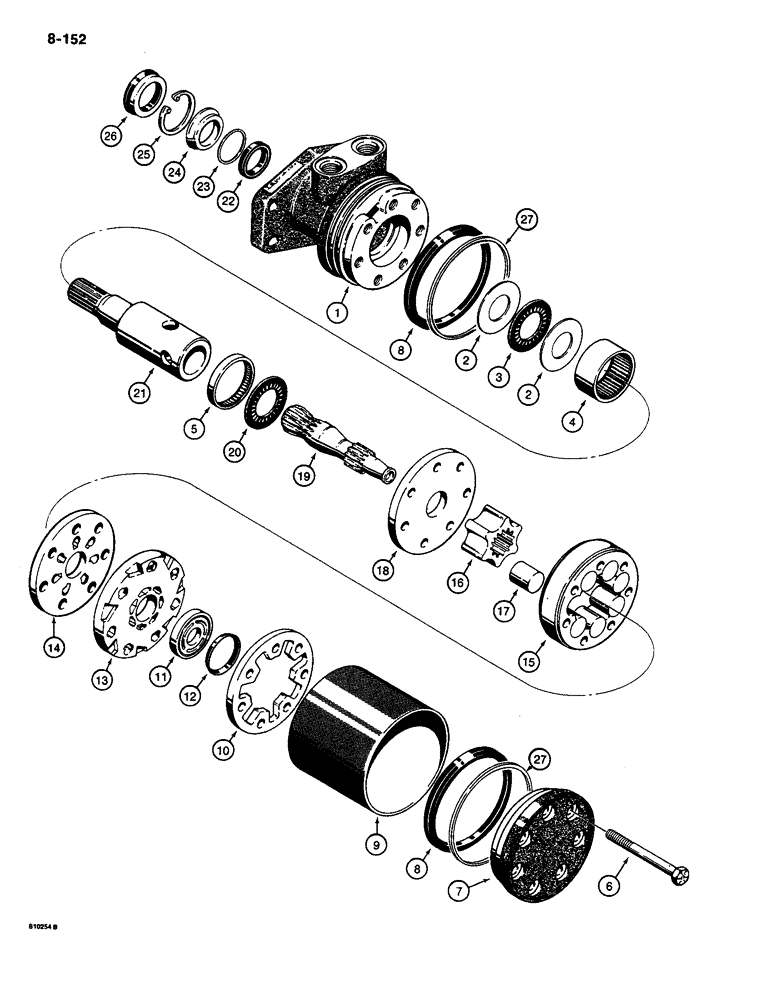

Запчасти Case CASE (8-152) - HYDRA-BORER MOTOR (08) - HYDRAULICS

D120048

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydra-borer drive, TRW No. MAB 16041, Includes: Refs. 1-27

2шт.

D59696

COVER

HOUSING ASSEMBLY - motor, inlet and outlet, Includes: Refs. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - motor, inlet and outlet

1шт.

2

D60861

WASHER

THRUST WASHER - housing

2шт.

3

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

- housing

1шт.

4

D60862

NEEDLE BEARING

- short

1шт.

5

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

- long

1шт.

6

28-662

BOLT,Hex, 3/8" - 24 x 3-7/8", Gr 8

- hex head, 3/8" - 24 NF x 3-7/8", grade 8

7шт.

7

N9527

COVER

- end

1шт.

8

N9509

SEALING RING

- sleeve

2шт.

Part of seal kit P/N N6972

1шт.

9

N9507

SLEEVE

- motor

1шт.

D60857

COMMUTATOR

ASSEMBLY - motor, Includes: Refs. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

11

NSS

NOT SOLD SEPARAT

COMMUTATOR - motor

1шт.

12

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

SEAL - commutator

1шт.

Part of seal kit P/N N6972

1шт.

13

D71235

MANIFOLD

- motor

1шт.

14

D71234

PLATE ASSY.

PLATE - manifold

1шт.

N9508

ROTOR

GEROTOR ASSEMBLY - motor, Includes: Refs. 15-17

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR - motor

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR - motor

1шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - motor

7шт.

18

N9504

PLATE ASSY.

WEAR PLATE - motor

1шт.

19

D72853

SHAFT

- drive, link

1шт.

20

D59698

THRUST BEARING,1.25" ID x 2.247" OD x 0.1094"

- drive shaft

1шт.

21

D59697

SHAFT

- coupling

1шт.

22

N9703

SEAL

- oil, inner

1шт.

Part of seal kit P/N N6972

1шт.

23

N9516

SHIM

WASHER - special, seal

1шт.

Part of seal kit P/N N6972

1шт.

24

N6702

RING

BACKUP RING - oil seal

1шт.

Part of seal kit P/N N6972

1шт.

25

N9702

RING, SNAP

SNAP RING - internal

1шт.

Part of seal kit P/N N6972

1шт.

26

N9544

SEAL

- dirt, outer

1шт.

27

N8747

RING

BACKUP RING - teflon, seal

2шт.

Part of seal kit P/N N6972

1шт.

N6972

SEAL KIT

KIT - seal, Includes: Refs. 8, 12, 22, 23, 24, 25 and 27; N6972 Seal Kit Used to Contain Seals for a 1-1/4" and a 1-1/2" Motor Shaft; Now it Only Contains the Seals for 1-1/2"; Must Order Seal Kit 174397C2 for the 1-1/4" Shaft

1шт.
