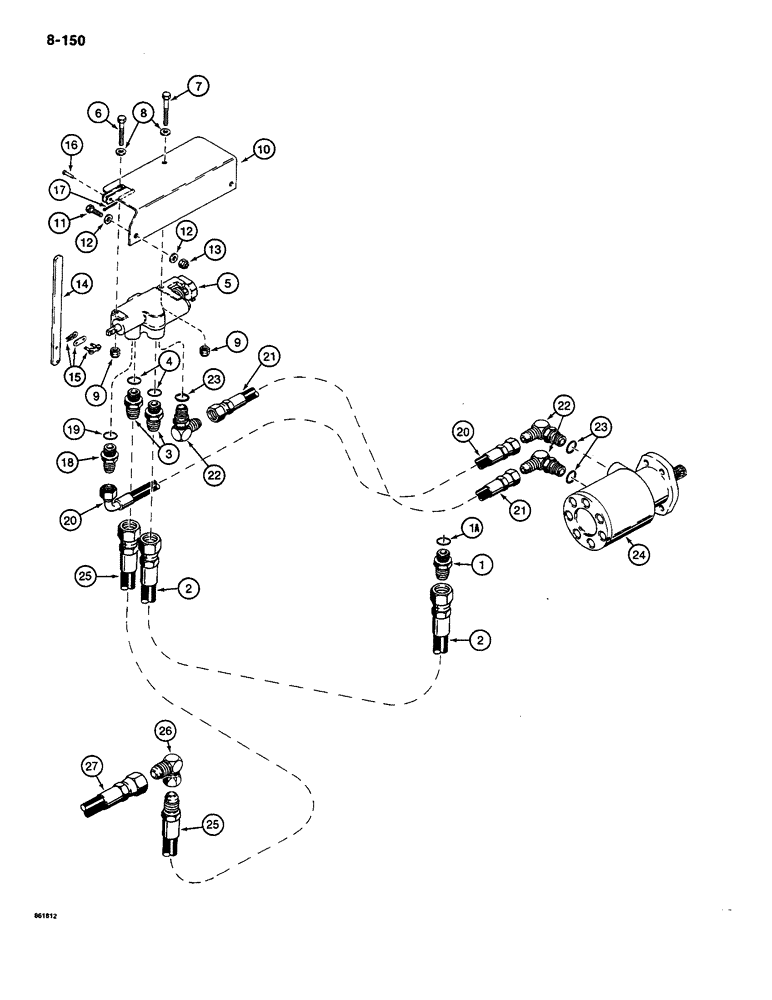

Запчасти Case CASE (8-150) - HYDRA-BORER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, to hydra-borer valve in port hose from plow pump, used on models without trencher, Includes: Ref. 1A

1шт.

1a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

2

L15030

HYDRAULIC HOSE,0.75" ID x 30.00", SAE 100R2 Type A

HOSE, , to Hydra-Borer Control Valve in Port from Trencher Control or Plow Pump 0.75" ID x 30.00", SAE 100R2 Type A

1шт.

On models equipped with a trencher, Ref. 2 hose connects to the trencher control valve outlet hose, see reference numbers 27 and 28 on figure 8-138.

1шт.

3

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

5

H544718

LOCK VALVE

CONTROL VALVE ASSEMBLY - hydra-borer, partslist figure 8-148

1шт.

6

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

7

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

8

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

10

H664730

SUPPORT

BRACKET - control valve mounting

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

14

H377325

LEVER

CONTROL LEVER - hydra-borer control valve

1шт.

15

B12505

LINK

- connector, complete, control, Serial Range: lever-bracket

1шт.

16

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

1шт.

17

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

20

H246124

HOSE

- 46" (1168 mm) long, control valve "A", Serial Range: port-motor

1шт.

21

H195958

HOSE,45.00", SAE 100R1

Control Valve "B" Port to Motor 45.00", SAE 100R1

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 23

3шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

D120048

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydra-borer, parts list figure 8-152, mounting on figure 9-184

1шт.

25

D31794

HOSE ASSY.

HOSE - 29" (736 mm) long, hydra-borer control valve out port

1шт.

26

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Street 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

27

H429597

HOSE ASSY.

HOSE - 73" (1850 mm) long, to plow control valve

1шт.
