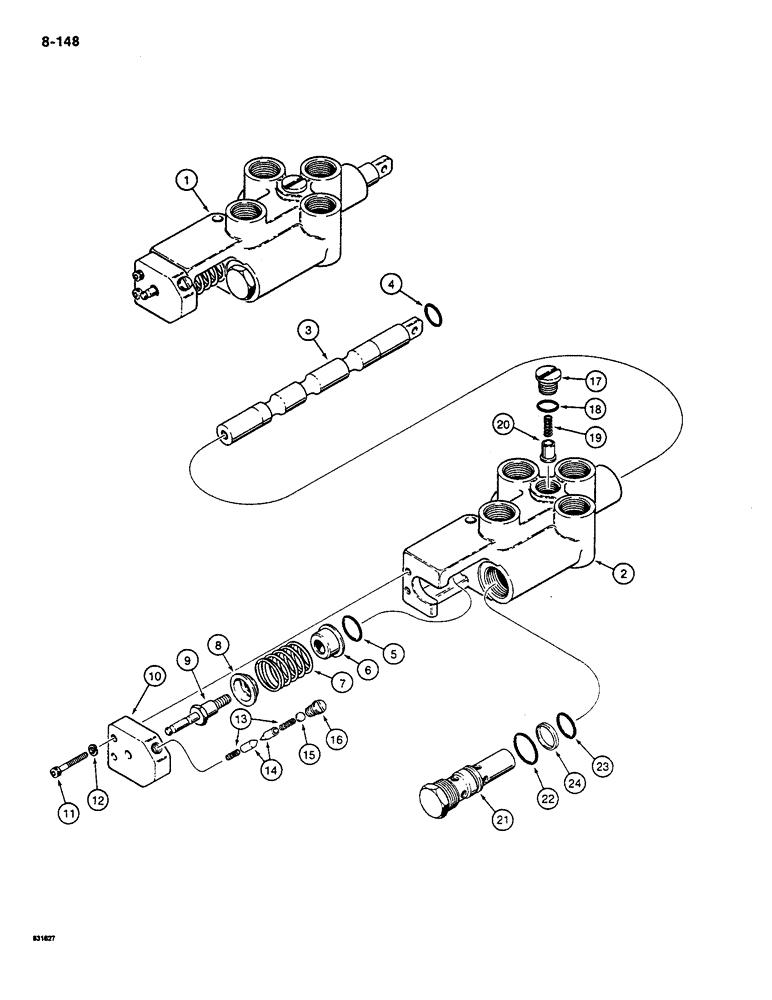

Запчасти Case CASE (8-148) - ATTACHMENT CONTROL VALVE (08) - HYDRAULICS

1

H544718

LOCK VALVE

CONTROL VALVE ASSEMBLY - attachment, one spool, Cessna No. 30501-AR, one each used for trencher and hydra-borer options, Includes: Refs. 2-24

1-2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

4

F37887

O-RING

- spool, spool eye end

1шт.

Part of seal kit P/N H125864

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool, plug end

1шт.

Part of seal kit P/N H125864

1шт.

6

H138271

WASHER

SEAT - spring, inner

1шт.

7

H52928

VALVE SPRING

SPRING - centering, spool

1шт.

8

F59116

WASHER

SEAT - spring, outer

1шт.

9

H152157

SCREW

- spool end, detent

1шт.

10

H125831

BLOCK

HOUSING - detent

1шт.

11

173-239

SCREW

- hex socket head, 1/4" - 20 NC x 1"

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

H105049

SPRING

- detent

2шт.

14

H104992

PAWL

PLUNGER - detent

2шт.

15

H141788

DISC

SHIM - detent

1шт.

16

H105015

PLUG

- detent retaining

1шт.

H47506

PLUG

ASSEMBLY - load check, Includes: Refs. 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

18

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- plug

1шт.

Part of seal kit P/N H125864

1шт.

19

FH730374

SPRING

- load check

1шт.

20

FH730366

PLUNGER

- load check

1шт.

N8813

LOCK VALVE

RELIEF VALVE ASSEMBLY - control valve, Includes: Refs. 21-24

1шт.

21

NSS

NOT SOLD SEPARAT

RELIEF VALVE - control valve

1шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outer, large

1шт.

Part of seal kit P/N H125864

1шт.

23

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, small

1шт.

Part of seal kit P/N H125864

1шт.

24

G32626

RING

BACKUP RING - inner O-ring

1шт.

Part of seal kit P/N H125864

1шт.

H125864

KIT

- seal, Includes: Refs. 4, 5, 18, 22, 23 and 24

1шт.
