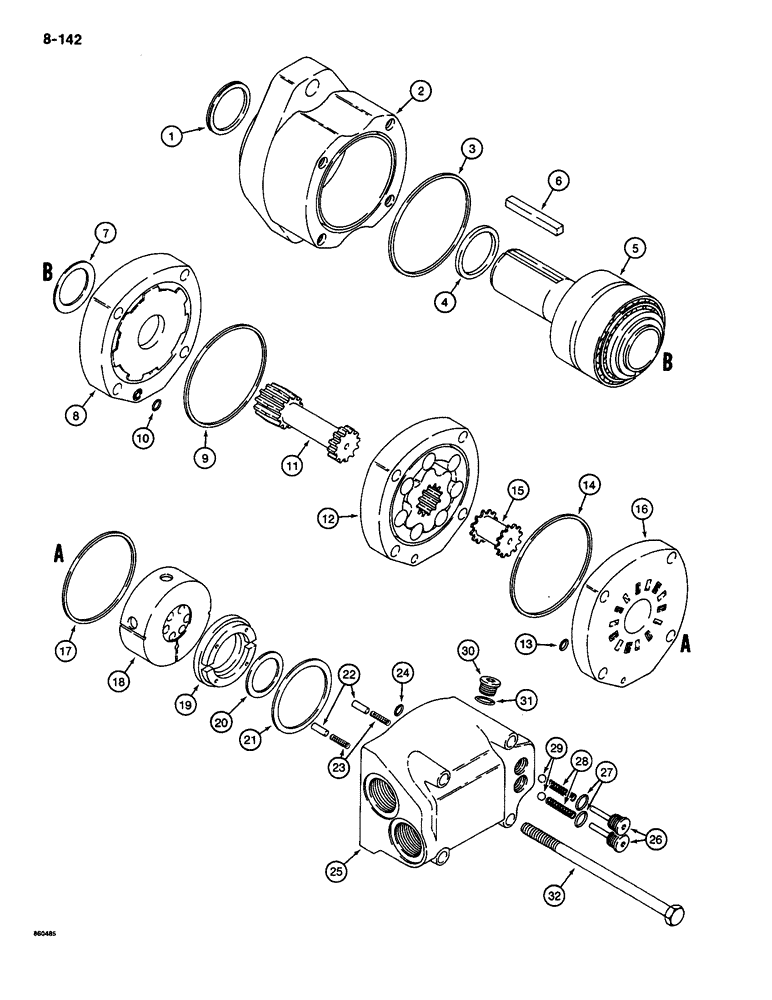

Запчасти Case CASE (8-142) - TRENCHER DRIVE MOTOR (08) - HYDRAULICS

H660373

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - trencher drive, Char-Lynn No. 104-1022, Includes: Refs. 1-32

1шт.

1

N9535

SEAL

- dust

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

3

S114357

SEAL,Square, 1.7mm Thk x 75.9mm ID

- bearing housing

1шт.

4

N9536

SEAL

- shaft

1шт.

5

H661546

KIT

SHAFT AND BEARING ASSEMBLY - motor, components not serviced separately

1шт.

6

N9531

KEY

- shaft

1шт.

7

S114491

SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk

- shaft to wear plate

1шт.

8

S114492

PLATE

WEAR PLATE - motor

1шт.

9

S114357

SEAL,Square, 1.7mm Thk x 75.9mm ID

- wear plate

1шт.

10

L30893

O-RING,1/16" Thk x 5/16" ID

- wear plate, 7/16 x 5/16 x 1/16 in

1шт.

11

N9537

DRIVE

SHAFT - motor drive

1шт.

12

N9538

GEROTOR

ASSEMBLY - motor, components not serviced separately, order complete assembly for service

1шт.

13

L30893

O-RING,1/16" Thk x 5/16" ID

- valve plate, 7/16 x 5/16 x 1/16 in

1шт.

14

S114357

SEAL,Square, 1.7mm Thk x 75.9mm ID

- valve plate

2шт.

15

S114496

COUPLING

DRIVE - valve

1шт.

16

S114358

PLATE

- valve

1шт.

17

S120618

SEAL

- housing

1шт.

18

S114362

VALVE

- motor

1шт.

19

N9532

PLATE

- balance

1шт.

20

N9533

SEAL

- balance plate, inner

1шт.

21

N9534

SEAL

- balance plate, outer

1шт.

22

S114372

PIN

- valve housing

2шт.

23

S114366

SPRING

- pin

2шт.

24

L30893

O-RING,1/16" Thk x 5/16" ID

- valve housing, 7/16 x 5/16 x 1/16 in

1шт.

S236486

HOUSING

ASSEMBLY - port end, Includes: Refs. 25-31

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - port end

1шт.

S236487

PLUG

ASSEMBLY - check valve, Includes: Refs. 26, 27

2шт.

THE TWO SMALLER HOLES TOWARD THE BACK WERE ELIMINATED BY EATON IN 1985 AS WELL AS REFS. 26-29

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - check valve

1шт.

27

S114499

O-RING

- plug

1шт.

28

D74394

SPRING

- check valve

2шт.

29

211-7

BALL,1/4" Dia

grade 200, chrome alloy steel 1/4" Dia

2шт.

30

278548

PLUG,Hex, 7/16"-20 ORB

Case drain, Incl Ref 31 Hex Soc, 7/16"-20 ORB

1шт.

31

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- plug

1шт.

32

114-262

BOLT,Hex, 3/8" - 24 x 4-3/4", Gr 5

Hex, 3/8"-24 x 4 3/4", G5

4шт.
