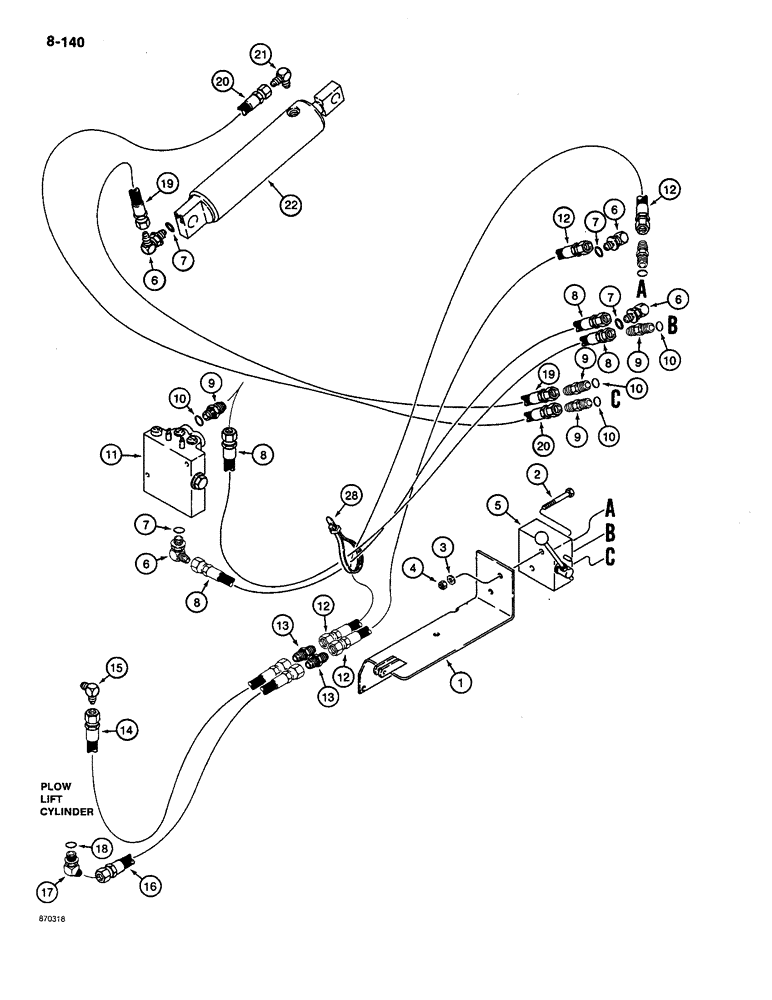

Запчасти Case CASE (8-140) - SELECTOR VALVE AND ATTACHMENT LIFT HYDRAULIC CIRCUITS MODELS WITH PLOW AND TRENCHER (08) - HYDRAULICS

1

H664722

SUPPORT

BRACKET - selector valve mounting, see figure 8-138 for bracket mounting hardware

1шт.

2

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

2шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

5

H616763

LOCK VALVE

SELECTOR VALVE ASSEMBLY - plow or trencher lift, parts list figure 8-146

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 7

4шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

8

D69101

HOSE

- 30" (762 mm) long, from plow lift ports on steering control valve

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 10

5шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

11

H550079

LOCK VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, mounting parts on figure 5-76, parts list figure 91

1шт.

12

H433162

HOSE

- 23-5/8" (600 mm) long, selector valve to plow lift cylinder, at selector valve

2шт.

13

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight

2шт.

14

H433052

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm, SAE 100R2

HOSE - 23-5/8" (600 mm) long, plow lift cylinder, rod end

1шт.

15

H433051

HYDRAULIC HOSE,6.35 mm ID x 1550.00 mm, SAE 100R2

HOSE - 35-1/2" (900 mm) long, Plow lift cylinder, Closed end

1шт.

16

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

17

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 18

1шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

19

H433466

HOSE

- 80-11/16" (2050 mm) long, lower left-hand port of selector valve to closed end of trencher lift cylinder

1шт.

20

H433468

HOSE

- 88-5/8" (2250 mm) long, lower right-hand port of selector valve to rod end of trencher lift cylinder

1шт.

21

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

22

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - trencher boom lift, parts list figure 8-144, mounting parts on figure 9-174

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
