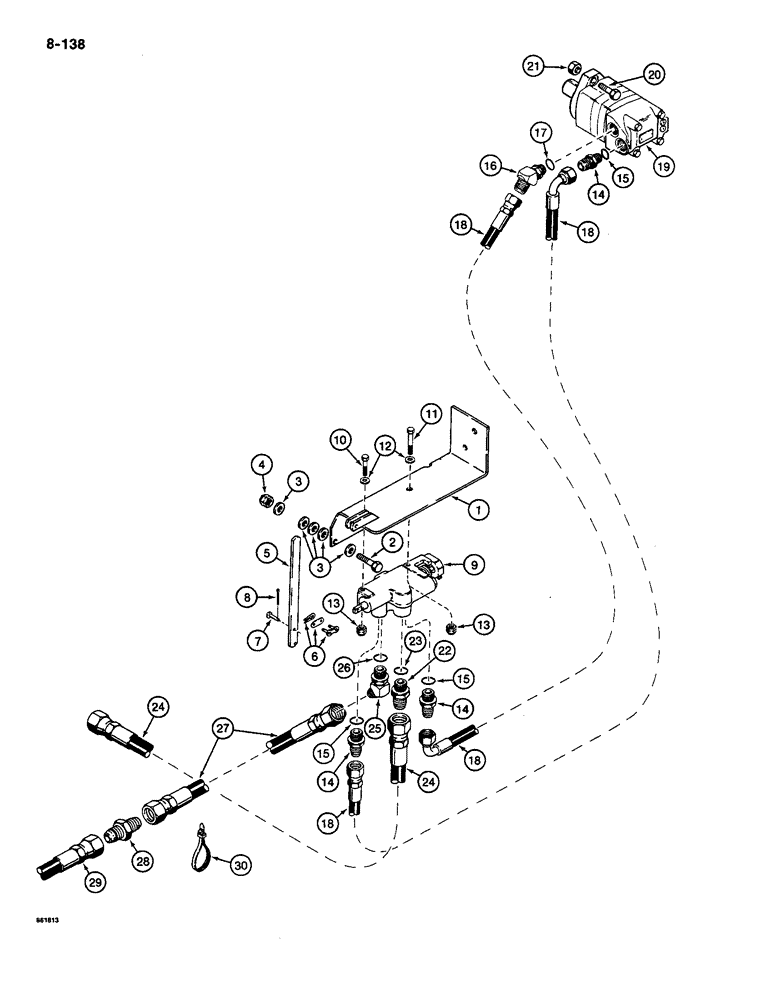

Запчасти Case CASE (8-138) - TRENCHER CONTROL VALVE MOUNTING AND DRIVE CIRCUIT (08) - HYDRAULICS

1

H664722

SUPPORT

BRACKET - trencher control valve and selector valve mounting

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

5

H377325

LEVER

CONTROL LEVER - trencher control valve

1шт.

6

B12505

LINK

- connector, complete, control, Serial Range: lever-bracket

1шт.

7

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

1шт.

8

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

9

H544718

LOCK VALVE

CONTROL VALVE ASSEMBLY - trencher, parts list figure 8-148

1шт.

10

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

11

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 15

3шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

16

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

H432609

HOSE

- 82-11/16" (2100 mm) long, control valve to chain drive motor

2шт.

19

H660373

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - trencher drive, parts list figure 8-142

1шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

21

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

22

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

L15030

HYDRAULIC HOSE,0.75" ID x 30.00", SAE 100R2 Type A

HOSE, , Trencher Control Valve Supply from Dual Pump 0.75" ID x 30.00", SAE 100R2 Type A

1шт.

25

218-5528

ELBOW,45 Degree, 1 1/16"-12 x 7/8"-14, O-Ring

- 45 degree, adjustable, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

27

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Trencher Control Valve Outlet to Plow Control Valve or Hydra-Borer Valve 0.75" ID x 23.62", SAE 100R2, SAE 100R3

1шт.

28

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight

1шт.

29

H429597

HOSE ASSY.

HOSE - 73" (1850 mm) long, to plow control valve

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
