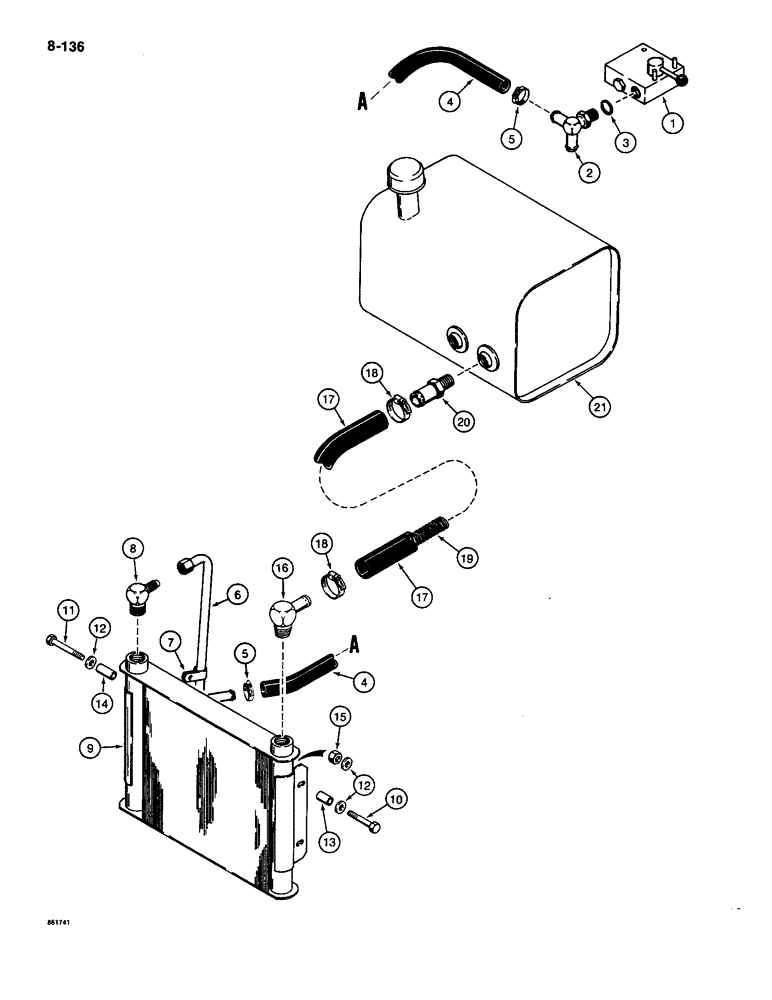

Запчасти Case CASE (8-136) - BASIC HYDRAULIC CIRCUIT, OIL COOLER AND RETURN LINES (08) - HYDRAULICS

1

H632588

SELECTOR

CONTROL VALVE ASSEMBLY - plow, parts list figure 8-156

1шт.

2

H351742

TEE

- special, return hoses to oil cooler, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

4

H353516

HOSE

- 3/4" (19 mm) ID x 96" (2438 mm) long, return, tee, to oil cooler, cut from H381962, see below

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

6

H626309

TUBE ASSY.,0.75" OD

TUBE - return, to oil cooler

1шт.

7

D49180

CLAMP

- return tube

1шт.

8

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree

1шт.

9

H351734

COOLER, OIL

COOLER - hydraulic oil

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

8шт.

13

D76210

SPACER

- cooler bracket to radaitor, 1.0" (25.4 mm) long

2шт.

14

D95555

SPACER

- cooler bracket to radiator, 1.4" (35.6 mm) long

2шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

16

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree

1шт.

17

H309021

HOSE

- 1" (25.4 mm) ID x 27" (686 mm) long, return, oil cooler to reservoir, cut from H307926, see below

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

19

H216994

VALVE SPRING

SPRING - hose support, 18" (457 mm) long

1шт.

20

217-156

FITTING,1" Hose Barb x 1" Male NPTF

STEM FITTING - straight

1шт.

21

H624981

RESERVOIR

- hydraulic oil, parts list figure 8-130

1шт.

H381962

HOSE

- bulk, 3/4" (19 mm)ID x 118" (2997 mm) long

1шт.

H307926

HOSE ASSY.

HOSE - bulk, 1" (25.4 mm) ID x 62" (1575 mm) long

1шт.
