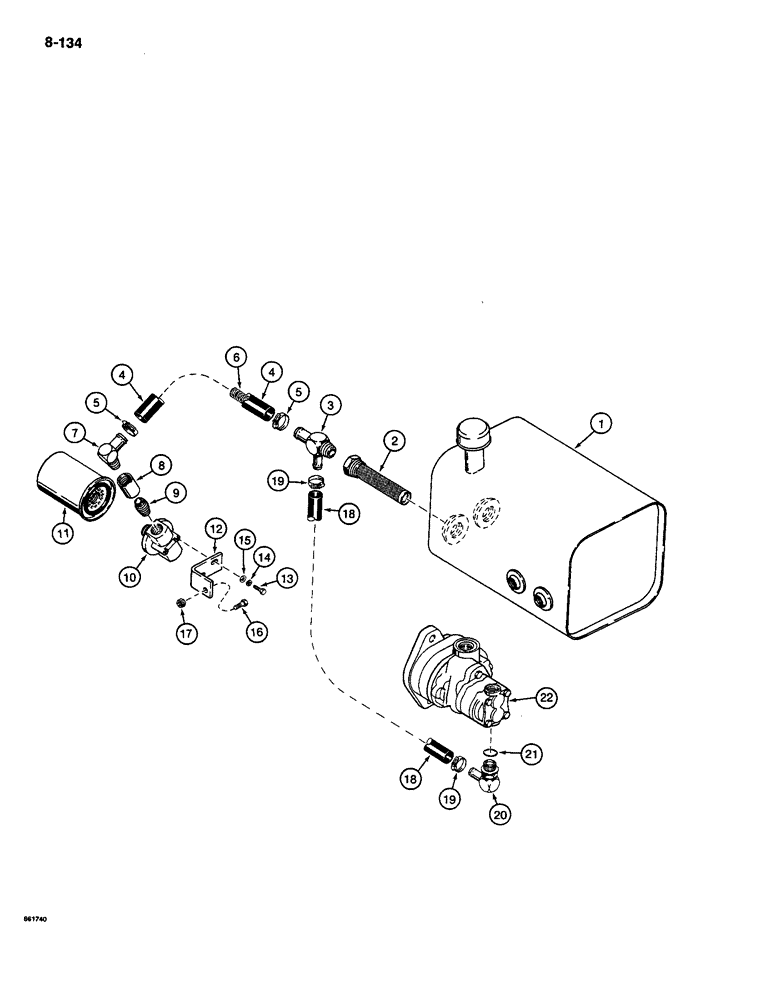

Запчасти Case CASE (8-134) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO FILTER AND PUMP (08) - HYDRAULICS

1

H624981

RESERVOIR

ASSEMBLY - hydraulic oil, parts list figure 8-130

1шт.

2

H584631

FILTER ASSY

SCREEN - suction

1шт.

3

H353243

FITTING

TEE - special, to filter and pump

1шт.

4

H337907

HOSE ASSY.

HOSE - 1" (25 mm) ID x 10" (254 mm) long, tee to filter, cut from H123729, see below

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

6

H353268

SPRING

- hose support, 6" (152 mm) long

1шт.

7

217-331

FITTING,90 Degree Elbow, 1" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree

1шт.

8

221-339

COUPLING,Pipe, 3/4" NPT

- 3/4" NPT

1шт.

9

221-1211

FITTING

NIPPLE - 3/4" NPT x 1-3/8"

1шт.

10

H616508

FILTER HEAD

BASE - filter, hydraulic

1шт.

11

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

12

H353193

BRACKET

- filter mounting

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

18

H317313

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 28" (711 mm) long, tee to tandem pump, cut from H309062, see below

1шт.

19

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

20

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM FITTING - 90 degree, adjustable, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

22

REF

INSTRUCTION

PUMP ASSEMBLY - dual, parts list figure 5-82

1шт.

H123729

HYDRAULIC HOSE,14.50"

- bulk 14.50"

1шт.

H309062

HOSE

- bulk, 3/4" (19 mm) ID x 51" (1295 mm) long

1шт.
