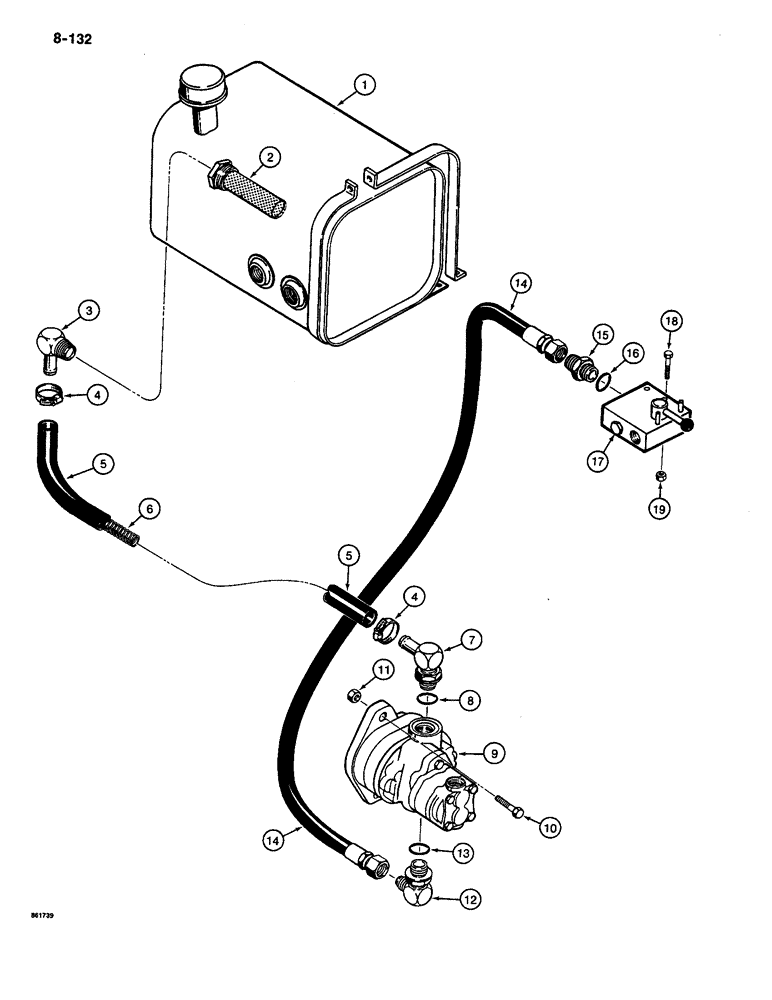

Запчасти Case CASE (8-132) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND VALVE (08) - HYDRAULICS

1

H624981

RESERVOIR

ASSEMBLY - hydraulic oil, parts list figure 8-130

1шт.

2

H584631

FILTER ASSY

SCREEN - suction

1шт.

3

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

5

H309096

HOSE

- 1" (25 mm) ID x 17" (432 mm) long, reservoir to tandem pump, cut from A160026 bulk hose, see below

1шт.

6

H33233

VALVE SPRING

SPRING - hose support, 12" (305 mm) long

1шт.

7

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Adjustable, Includes Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

9

REF

INSTRUCTION

PUMP ASSEMBLY - dual, parts list figure 5-82

1шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

11

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

12

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

14

H429597

HOSE ASSY.

HOSE - 73" (1850 mm) long, pump to plow control valve

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

17

H632588

SELECTOR

CONTROL VALVE ASSEMBLY - plow, parts list figure 8-156

1шт.

18

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

A160026

HOSE,1.00" ID x 77.00", SAE 30R2 TYPE 1 PER SAE J30

1.00" ID x 77.00", SAE30R2 - Bulk

1шт.
