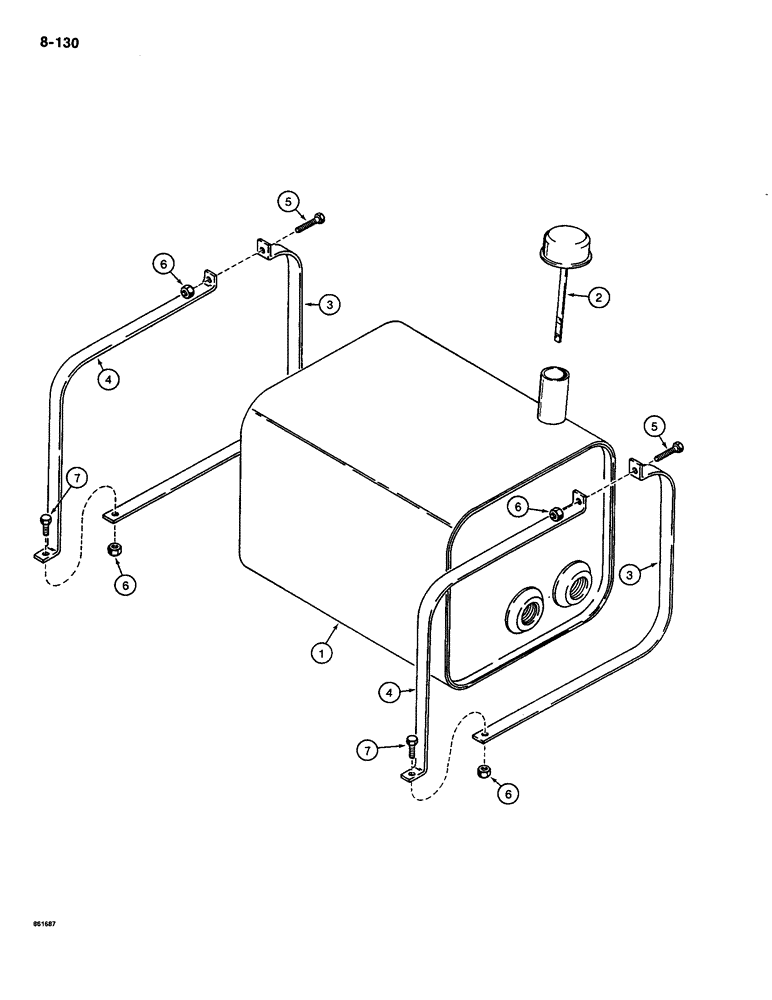

Запчасти Case CASE (8-130) - HYDRAULIC OIL RESERVOIR (08) - HYDRAULICS

H624981

RESERVOIR

ASSEMBLY - hydraulic oil, Includes: Refs. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic oil

1шт.

2

H211029

DIPSTICK

CAP AND DIPSTICK - hydraulic reservoir

1шт.

3

H335273

STRAP

- reservoir mounting, lower

2шт.

4

H335265

STRAP

- reservoir mounting, upper

2шт.

5

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.
