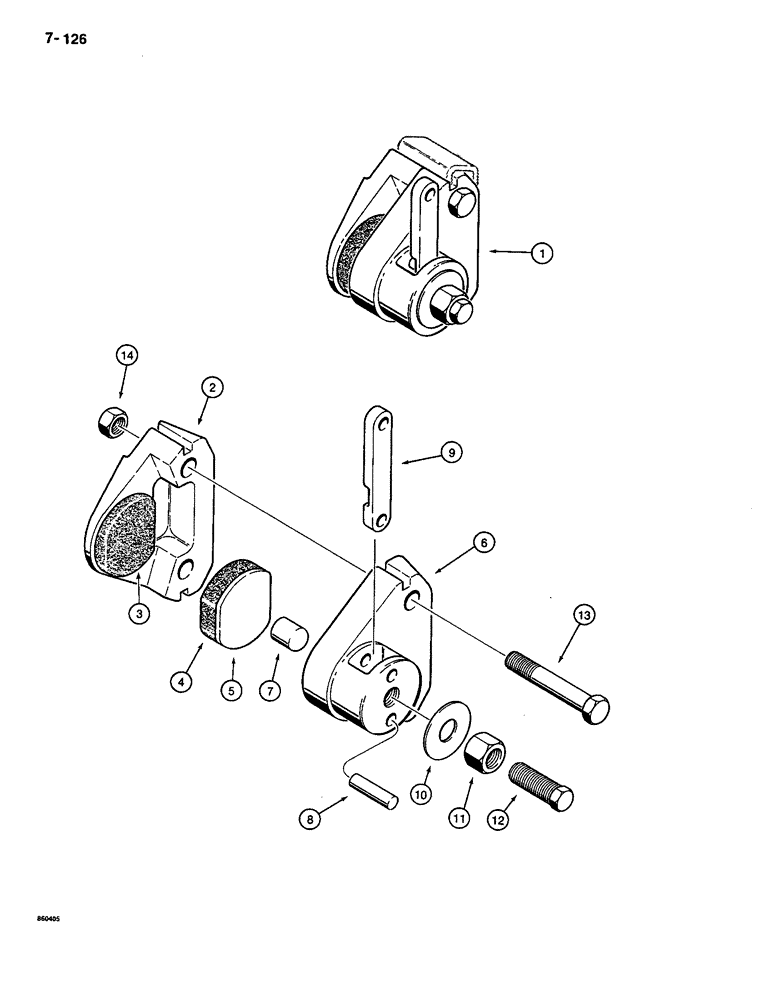

Запчасти Case CASE (7-126) - DISC BRAKE CALIPER (07) - BRAKES

1

H638858

CALIPER

ASSEMBLY - disc brake, Includes: Refs. 2-14

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - caliper, lined, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

LINING - brake, housing

1шт.

Part of brake lining kit P/N H378463

1шт.

4

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

Part of brake lining kit P/N H378463

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

Part of brake lining kit P/N H378463

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - caliper, lever end

1шт.

7

H378489

PIN

- caliper

1шт.

8

H378505

PULLEY

PIN - grooved, special

1шт.

9

H378521

LEVER

- caliper actuating

1шт.

10

195-105

WASHER,7/16"

- flat, , plated 7/16"

1шт.

11

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - caliper adjusting

1шт.

13

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5

2шт.

14

131-177

LOCK NUT,3/8"-24, GA

NUT - hex, self-locking, 3/8" - 24 NF, plated

2шт.

H378463

LINING

KIT - brake lining, Includes: Refs. 3, 4 and 5

1шт.
