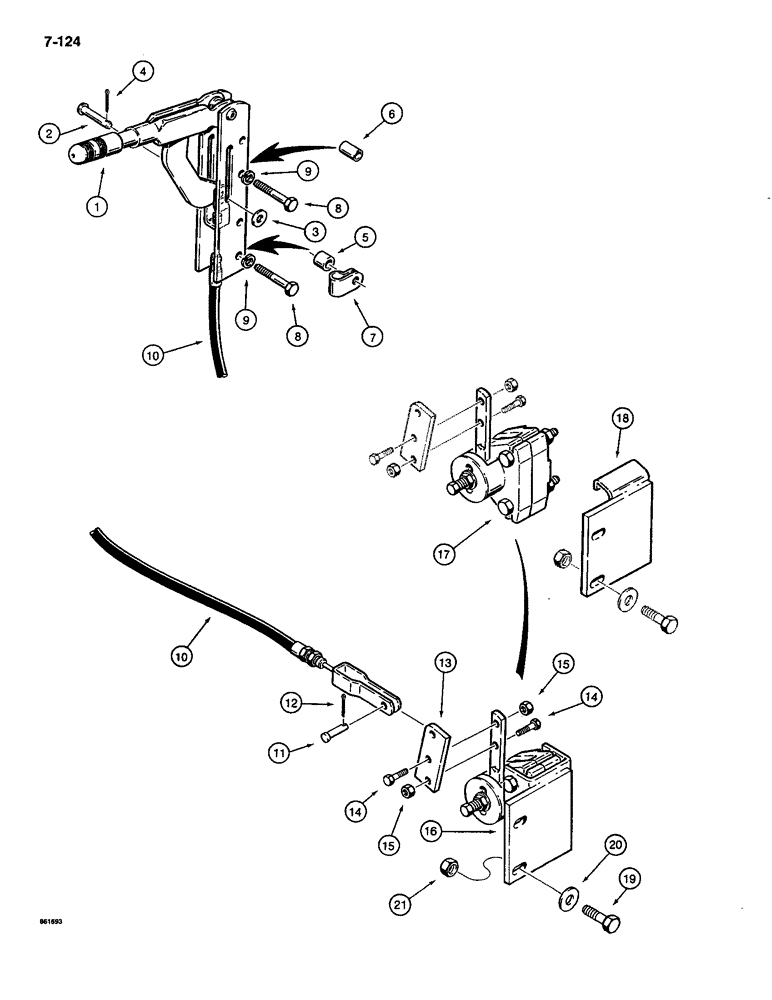

Запчасти Case CASE (7-124) - PARKING BRAKE (07) - BRAKES

H506881

HANDLE

LEVER ASSEMBLY - parking brake, Includes: Refs. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

2

D42458

PIN

CLEVIS PIN - special

1шт.

3

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

H53959

SPACER

- brake lever, 1/2" (13 mm) long

1шт.

6

H53942

SPACER

- brake lever, 3/4" (20 mm) long

1шт.

7

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- cable

1шт.

8

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

H671040

CABLE PULLING GRIP

CABLE - parking brake

1шт.

11

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

1шт.

12

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

13

H381582

LEVER

- disc brake actuating

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

16

H591818

SPARE PART

CALIPER ASSEMBLY - parking brake, includes mounting bracket, no longer available, order ref. 17 caliper assembly, and ref. 8 bracket

1шт.

See Figure 6-98 for parking brake disc and mounting.

1шт.

17

H638858

CALIPER

ASSEMBLY - parking brake, does not includes mounting bracket, parts list figure 123

1шт.

See Figure 6-98 for parking brake disc and mounting.

1шт.

18

H639856

BRACKET

- brake caliper mounting

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

20

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
