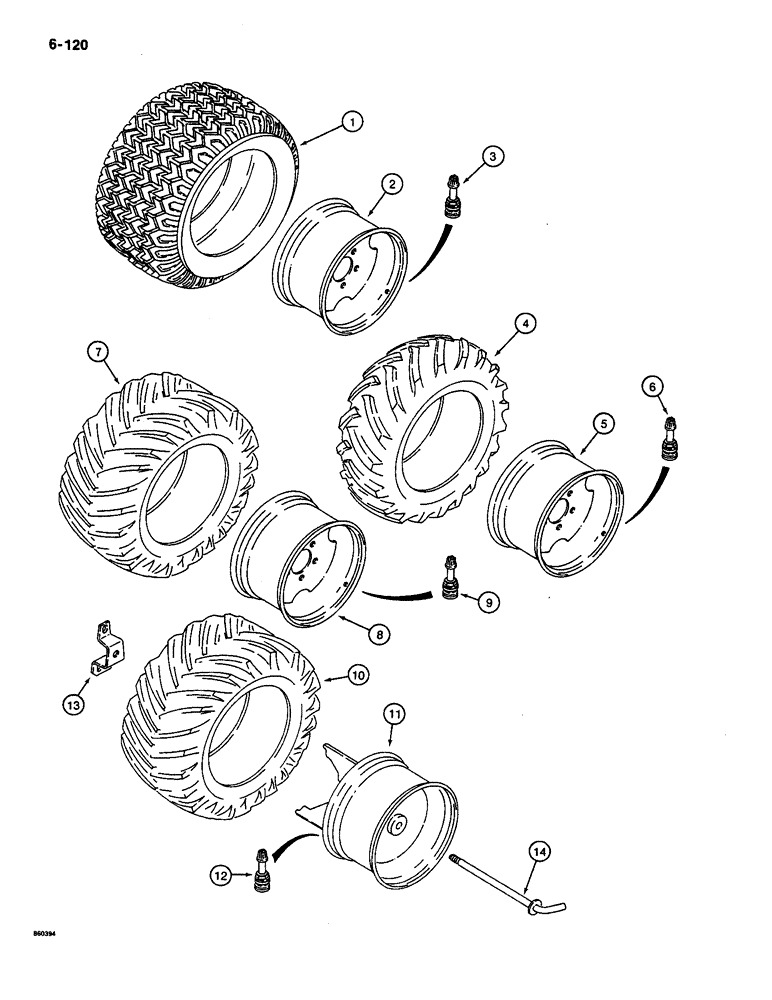

Запчасти Case CASE (6-120) - WHEELS AND TIRES (06) - POWER TRAIN

1

REF

INSTRUCTION

TIRE - 23 x 8.50 x 12, transport, turf and garden, not a service item, purchase locally

4шт.

2

H554972

WHEEL

- rim, 7.00 x 12

4шт.

3

C10442

VALVE

STEM - tire inflation

4шт.

4

H164616

TYRE/TIRE

TIRE - 23 x 8.50 x 12, all traction, field and road, not a service item, purchase locally

4шт.

5

H554972

WHEEL

- rim, 7.00 x 12

4шт.

6

C10442

VALVE

STEM - tire inflation

4шт.

7

H231944

TYRE/TIRE

TIRE - 23 x 10.50 x 12, all traction, super terra grip, not a service item, purchase locally

4шт.

8

H575571

RIM

WHEEL - rim, 8.50 x 12

4шт.

9

C10442

VALVE

STEM - tire inflation

4шт.

10

H231944

TYRE/TIRE

TIRE - 23 x 10.50 x 12, all traction, super terra grip, not a service item, dual wheel option purchase locally

4-8шт.

11

H669333

WHEEL

- rim, 8.50 x 12, dual wheel option

2-4шт.

12

C10442

VALVE

STEM - tire inflation, dual wheel option

4-8шт.

13

H669341

BRACKET

- dual wheel, option

2-4шт.

14

H669358

BOLT

BOLT - L-type, special, dual wheel option

2-4шт.
