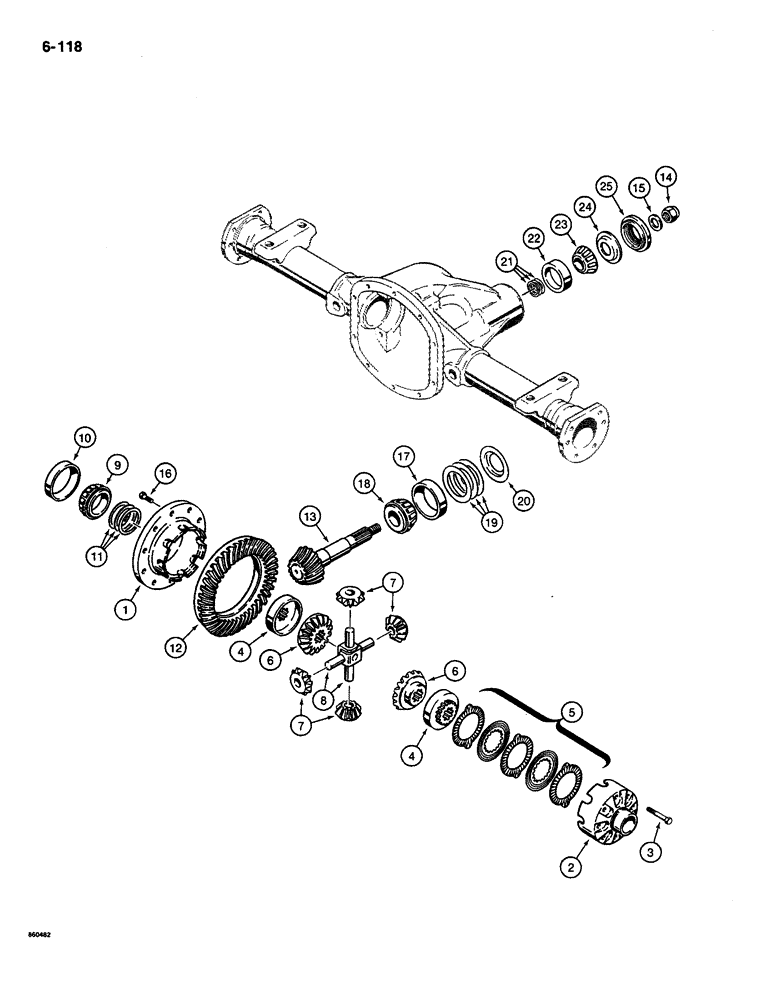

Запчасти Case CASE (6-118) - FRONT AND REAR AXLES, DIFFERENTIAL, TWO HOLE MOUNTING PAD (06) - POWER TRAIN

H631499

CENTER AXLE

AXLE ASSEMBLY - front and rear, also includes parts listed on figure 6-114, Includes: Refs. 1-25

2шт.

H248443

CASE ASSY.

CASE ASSEMBLY - differential, Includes: Refs. 1-3

1шт.

1

H204768

HUB

CASE - flange half

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

3

H232579

BOLT,Hex, 3/8" - 24 LH Thd x 2.906"

- hex head, special

8шт.

4

H204719

RING

- side gear

2шт.

5

H206896

CLUTCH DISC

DISC SET - plates, differential

1шт.

H197939

GEAR-SET

GEAR SET - differential, Includes: Refs. 6-8

1шт.

6

H204727

GEAR WHEEL

GEAR - differential

2шт.

7

H204750

PINION

- differential

4шт.

8

H204743

CROSS

SHAFT - pinion

2шт.

9

H753616

BEARING CONE

CONE - bearing, differential

2шт.

10

H753608

CONE

CUP - bearing, differential

2шт.

11

H197947

SHIM,.003" Thk

Case adjustment (0.08 mm) .003" Thk

1шт.

11

H197954

SHIM,.005" Thk

Case adjustment (0.13 mm) .005" Thk

1шт.

11

H197962

SHIM,.010" Thk

Case adjustment (0.25 mm) .010" Thk

1шт.

11

H197970

SHIM,.030" Thk

Case adjustment (0.76 mm) .030" Thk

1шт.

H583492

GEAR-SET

PINION AND RING GEAR SET - axle, Includes: Refs. 12-14

1шт.

12

NSS

NOT SOLD SEPARAT

RING GEAR - differential case

1шт.

13

NSS

NOT SOLD SEPARAT

PINION SHAFT - input

1шт.

14

H197566

NUT

- special, yoke retaining

1шт.

15

H197574

WASHER

- special, pinion shaft

1шт.

16

H225219

BOLT (SPREADER)

SCREW - ring gear mounting

10шт.

17

H753525

CUP

- pinion shaft bearing, inner

1шт.

18

H753533

BEARING CONE

CONE - pinion shaft bearing, inner

1шт.

19

H197871

SHIM,.003" Thk

Pinion shaft (0.08 mm), Inner .003" Thk

1шт.

19

H197889

SHIM,.005" Thk

Pinion shaft (0.13 mm), Inner .005" Thk

1шт.

19

H197897

SHIM,.010" Thk

Pinion shaft (0.25 mm), Inner .010" Thk

1шт.

20

H197616

BAFFLE

- pinion bearing

1шт.

21

H197665

SHIM,.003" Thk

Pinion shaft (0.08 mm), Outer .003" Thk

1шт.

21

H197673

SHIM,.005" Thk

Pinion shaft (0.13 mm), Outer .005" Thk

1шт.

21

H197681

SHIM,.010" Thk

Pinion shaft (0.25 mm), Outer .010" Thk

1шт.

21

H197699

SHIM,.030" Thk

Pinion shaft (0.76 mm), Outer .030" Thk

1шт.

22

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP - pinion shaft bearing, outer

1шт.

23

H753483

BEARING

CONE - pinion shaft bearing, outer

1шт.

24

H197764

WASHER

SLINGER - oil, pinion shaft

1шт.

25

N8427

OIL SEAL

SEAL - oil, pinion shaft

1шт.
