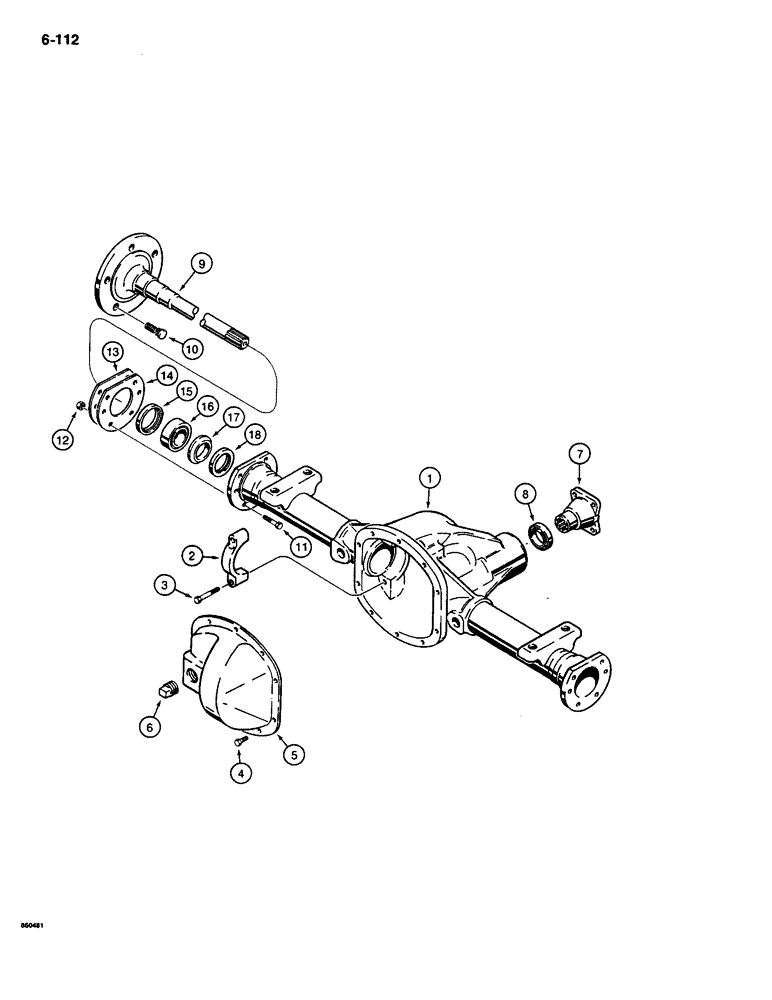

Запчасти Case CASE (6-112) - FRONT AND REAR AXLES, HOUSING, COVER, YOKE, AND SHAFTS THREE HOLE MOUNTING PAD (06) - POWER TRAIN

H645945

CENTER AXLE

AXLE ASSEMBLY - front and rear, also includes parts listed on figure 6-116, Includes: Refs. 1-18

2шт.

N13736

HOUSING ASSY.

HOUSING ASSEMBLY - axle, includes tubes, Includes: Refs. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

3

H248310

CYLINDER END CAP

BOLT - hex head, special

4шт.

4

H226555

FLANGE BOLT

BOLT - hex head, special, cover

10шт.

N13736

HOUSING ASSY.

COVER ASSEMBLY - axle, Includes: Refs. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - axle housing

1шт.

6

221-676

PLUG

- square head, 3/4" NPT, magnetic

1шт.

NSS

NOT SOLD SEPARAT

YOKE ASSEMBLY - axle, Includes: Refs. 7, 8

1шт.

7

H197582

YOKE

- axle

1шт.

8

H196998

SPACER

SLINGER - oil, yoke

1шт.

H610691

CENTER AXLE

SHAFT ASSEMBLY - axle, Includes: Refs. 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - axle

1шт.

10

H171090

WHEEL BOLT

BOLT - wheel

5шт.

11

H197715

BOLT

BOLT - special, axle retaining

8шт.

12

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

8шт.

13

H303313

RING

RETAINER - oil seal

2шт.

14

NSS

NOT SOLD SEPARAT

SPACER - wheel bearing

2шт.

15

H757153

OIL SEAL

- oil

2шт.

16

H757161

BEARING

- wheel

2шт.

17

H303305

RETAINER

- oil seal

2шт.

18

H197749

SEAL

- oil

2шт.

M20704

ADHESIVE

GASKET - cover, form-in-place, 28 fluid ounces per tube

1шт.
