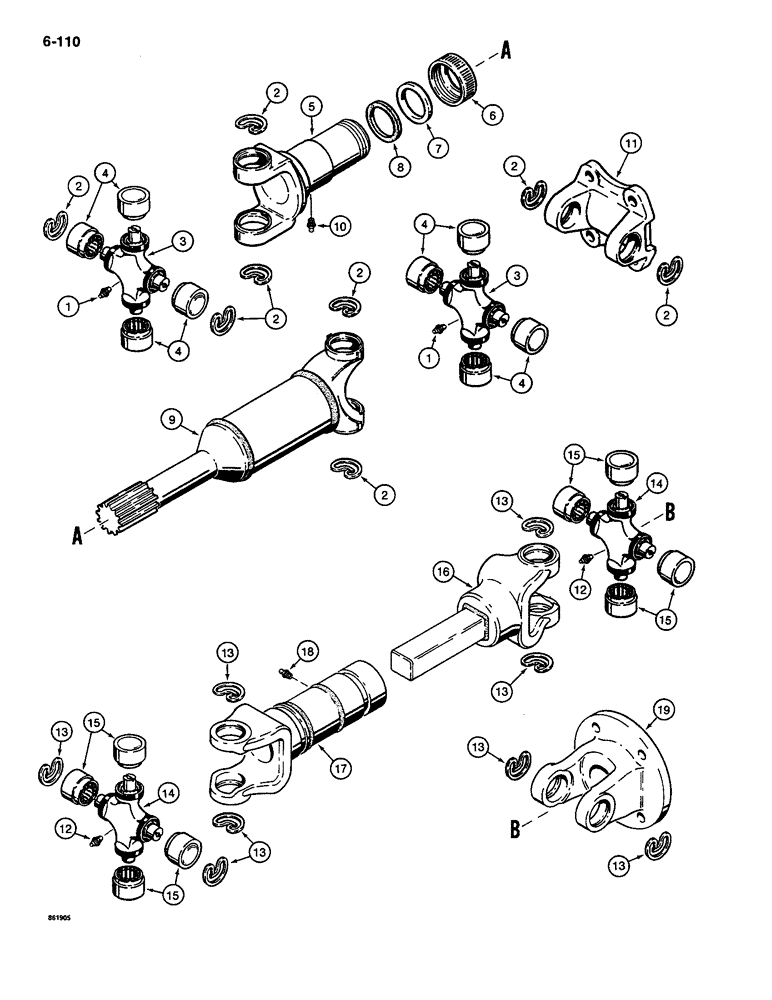

Запчасти Case CASE (6-110) - DRIVE SHAFT, DRIVE SHAFT WITH SPLINED END (06) - POWER TRAIN

H588541

DRIVE SHAFT

ASSEMBLY - axle, with splined end, Includes: D70629 KIT and Refs. 1-11

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Refs. 1-4

2шт.

1

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

2

11256

SNAP RING

SNAP RING - bearing retaining

4шт.

3

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

5

H223867

YOKE

- slip, drive shaft

1шт.

6

H223875

CYLINDER END CAP

CAP - dust

1шт.

7

H223891

WASHER

- special, steel

1шт.

8

H223883

WASHER

- special, cork

1шт.

9

H601641

DRIVE SHAFT

TUBE - drive shaft

1шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

11

H251777

FLANGE

YOKE - flanged

1шт.

H661199

DRIVE SHAFT

ASSEMBLY - axle, with square end, Includes: 667558R91 KIT and Refs. 12-19

1шт.

667558R91

KIT

- universal joint, Includes: Refs. 12-15

2шт.

12

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper, drive shaft with square end

1шт.

13

NSS

NOT SOLD SEPARAT

SNAP RING - bearing retaining, drive shaft with square end

4шт.

14

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft, square end

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - universal joint, drive shaft with square end

4шт.

16

NSS

NOT SOLD SEPARAT

YOKE - slip, drive shaft, square end

1шт.

17

NSS

NOT SOLD SEPARAT

TUBE - drive shaft, square end

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Drive shaft with square end 1/4"-28 NPT x .54" lg

1шт.

19

H415091

YOKE - flanged, drive shaft with square end

1шт.
