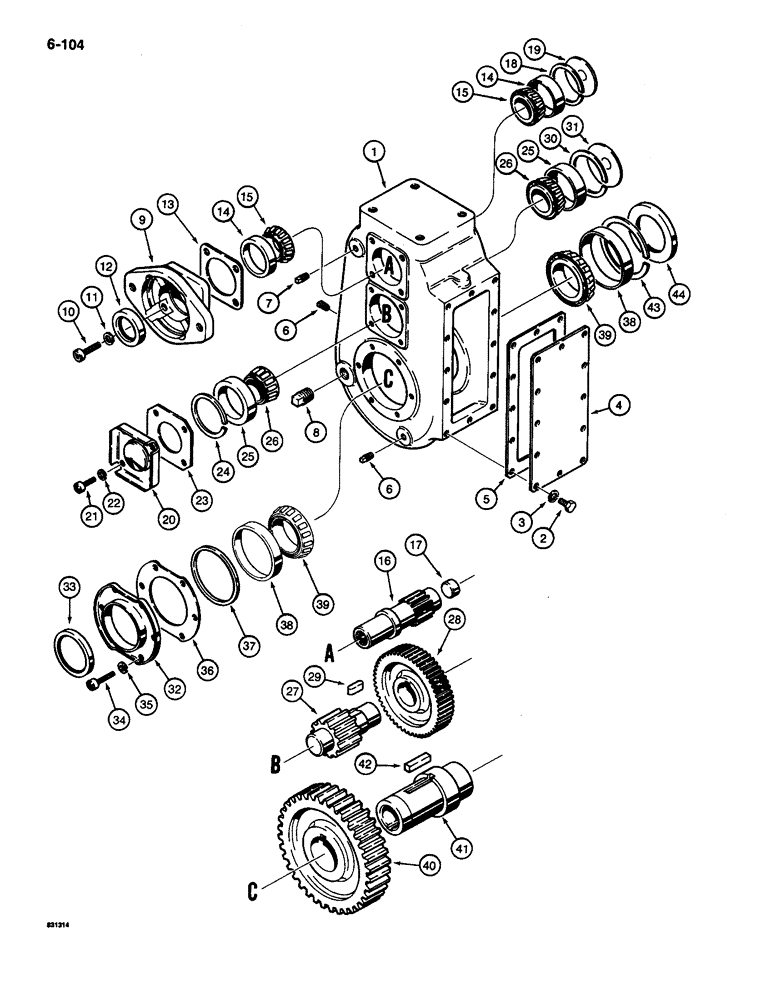

Запчасти Case CASE (6-104) - TRANSMISSION, PIN 1189391 THRU 1205065 (06) - POWER TRAIN

H655571

TRANSMISSION

ASSEMBLY - Terrell No. HL4-CP-100, Includes: Refs. 1-44

1шт.

1

H403170

HOUSING - transmission

1шт.

2

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

12шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

4

H362590

COVER

- housing

1шт.

5

H362715

GASKET

- cover

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8" NPT

2шт.

7

H362723

VENT

PLUG - breather, 3/8" NPT

1шт.

8

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, 3/4" NPT

1шт.

9

H362566

ADAPTER

BRACKET - pump mounting

1шт.

10

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex socket head, 3/8" - 16 NC x 1-1/2"

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

4шт.

12

H362731

SEAL

- input gear shaft

1шт.

13

H362657

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

13

H362665

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

13

H362673

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

14

G57451

BEARING, CUP

CUP - bearing, input gear shaft

2шт.

15

G57452

ROLLER BEARING

CONE - bearing, input gear shaft

2шт.

16

H362608

SHAFT

GEAR AND SHAFT - input

1шт.

17

41-1016

PLUG,Cup, 1"

- , gear shaft Cup, 1"

1шт.

18

H758300

SNAP RING,2.562", Int, #256

Ring, Snap, , brg, input 2.562", Int, #256

1шт.

19

41-41

PLUG,Exp, 2 9/16"

- expansion, 2-9/16" diameter

1шт.

20

H403022

COVER

- intermediate gear shaft

1шт.

21

165-153

HEX SOC SCREW,5/16" - 18 x 1"

BOLT - hex socket head, 5/16" - 18 NC x 1", plated

4шт.

22

192-404

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

4шт.

23

H403139

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

23

H403147

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

23

H403154

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

24

H758300

SNAP RING,2.562", Int, #256

Ring, Snap, , spacer, intermediate gear shaft 2.562", Int, #256

1шт.

25

A30580

BEARING CUP

CUP - bearing, intermediate gear shaft

2шт.

26

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, intermediate gear shaft

2шт.

27

H362624

GEAR AND SHAFT - intermediate

1шт.

28

H362616

GEAR

- intermediate

1шт.

29

H70243

KEY

- square, 3/8" x 96" long, intermediate shaft

1шт.

30

A31255

SNAP RING,2.875", Int, #287

Ring, Snap, , gear shaft 2.875", Int, #287

1шт.

31

41-46

PLUG

- expansion, 2-7/8" diameter

1шт.

H655571

TRANSMISSION

ASSEMBLY, continued

1шт.

32

H393868

COVER

- output shaft

1шт.

33

H362830

SEAL ASSY.

SEAL - output shaft, rear

1шт.

34

165-153

HEX SOC SCREW,5/16" - 18 x 1"

BOLT - hex socket head, 5/16" - 18 NC x 1", plated

6шт.

35

192-404

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

6шт.

36

H394775

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

36

H394783

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

36

H394791

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

37

H394858

SPACER, RING

SPACER - bearing, output

1шт.

38

A50179

BEARING CUP

CUP - bearing, output shaft

2шт.

39

A30494

CONE

- bearing, output shaft

2шт.

40

H362632

GEAR

- output

1шт.

41

H362640

SHAFT

- output

1шт.

42

H34488

KEY

- square, 3/8" x 1-1/2" long, output shaft

1шт.

43

R30570

SNAP RING,3.75", Int, #375

Ring, Snap, brg 3.75", Int, #375

1шт.

44

H362848

SEAL

- output shaft, front

1шт.
